P-25-W-XP

P-25-W-XP

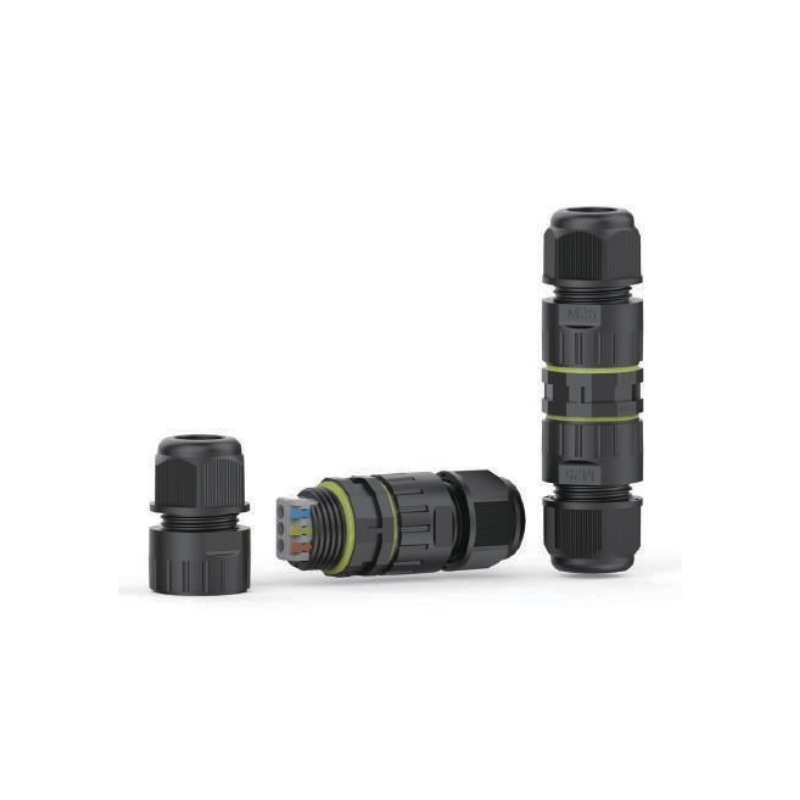

IP68 screwless connector 2/3pins
Description

P-25-W-XP

  • ● IP68 screwless connector for fast and reliable waterproof wiring
  • ● Available in 2 and 3‑pin versions
  • ● Quick screw‑free connection system
  • ● PA66 UL94 V‑0 housing with silicone rubber seal
  • ● Rated 16A / 450V
  • ● Wire section 0.5–2.5mm²
  • ● Fits cable diameters 5–9mm, 9–12mm and 10–14mm
  • ● Stripping length 8–12mm
  • ● Operating temperature −40°C to +105°C
  • ● Suitable for lighting projects, junction points and outdoor installations
