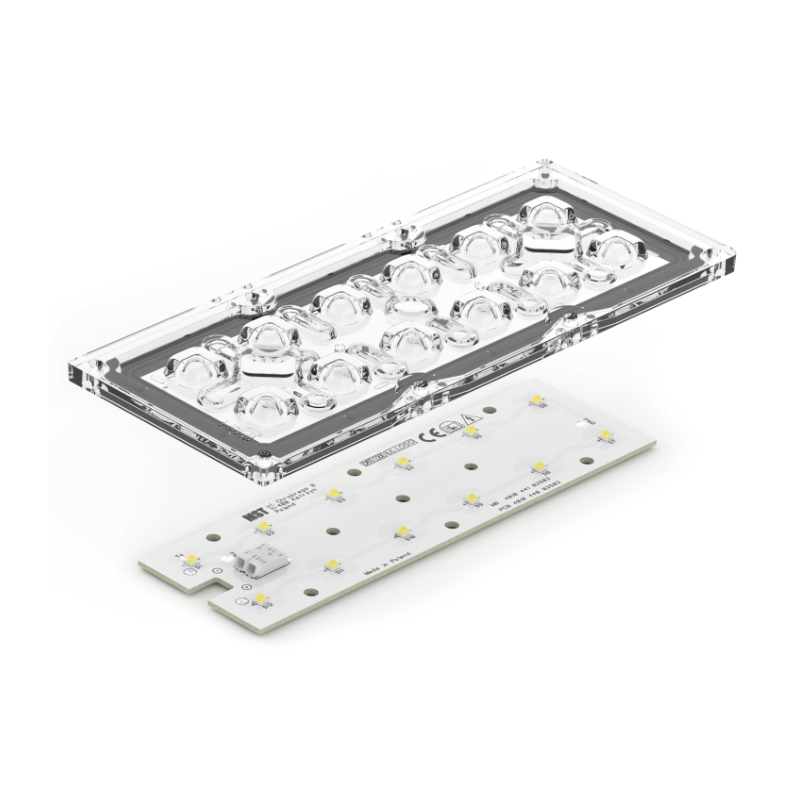

RECLED 146X45MM STRADA-IP-2X6 OPT G2 LED MODULES
RecLED 146x45mm STRADA-IP-2X6 Opt G2
Up to 183lm/W - STRADA-IP-2X6 outdoor modules
Description
RecLED 146x45mm STRADA-IP-2X6 Opt G2
- MST built-in constant-current rectangular LED modules for outdoor luminaires, compatible with standard 2x6 optics including LEDiL STRADA-IP-2X6.
- 146x45mm format, nominal 2900lm designation, CRI 70 Opt G2; listed CCT options are 2200K, 2700K, 3000K and 4000K. Other CCT and CRI on request.
- At 500mA nominal current and 17W, luminous flux is 2431lm at 2200K, 2687lm at 2700K, 2858lm at 3000K or 3029lm at 4000K; efficacy up to 183lm/W. Forward voltage is 33V; current range 100-1500mA.
- 120° beam angle, 5 SDCM and RG2 photobiological safety (RG1 at distances greater than 0.5m). Rated performance temperature 75°C; maximum safe case temperature 95°C.
- Maximum 11 modules in series. CE, ENEC, ENEC+, RoHS and REACH compliant. STRADA-IP refers to compatible optics, not a standalone IP rating of the module.
- Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
- No standalone IP rating; suitable protection must be provided by the luminaire.
- 2200K / 2700K ordering codes: 1010 127 84946; 1010 127 50846.
- 3000K / 4000K ordering codes: 1010 117 74146; 1010 117 74246.
-
