• Neuf
XSC70W350-1400-NFC-NX
  • XSC70W350-1400-NFC-NX
Documents joints
Téléchargement
DATASHEET

XSC70W350-1400-NFC-NX.pdf

Téléchargement (723.69k)

XSC70W350-1400-NFC-NX

158910
Description

158910

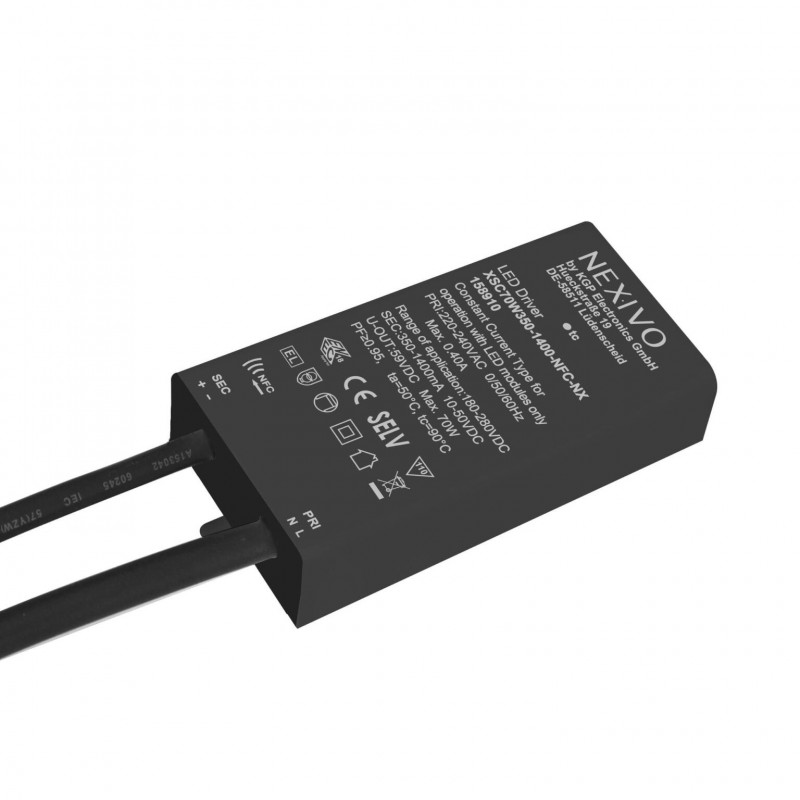

XSC70W350-1400-NFC-NX - 158910 - NEXIVO by KGP GMBH - Driver LED - Courant constant - Courant de sortie 350-1400 mA - Puissance jusqu’à 70 W - Tension de sortie 10-50 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 10% - Rendement 89-89% - Isolation - Class II - IP67 - Independent - Dimensions 105 x 65,2 x 25,1 mm - Durée de vie 100000 h - Garantie 5 ans

Références spécifiques a

LAS CODE 158910
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming ON OFF
Output Type Constant Current
Min Output Current mA 350
Min Input Voltage V 10
Max Output Voltage in V 50
Max Output Voltage in V 1400
Remote or Built In Independent
IP RATING IP67
How To Program the Current? NFC
Length 105
Width 65.2
Heigth 25.1
KGP EQUIVALENT MODEL XSC70W350-1400-NFC
