SC30W200-700CG4-W-NX

156400
Description

156400

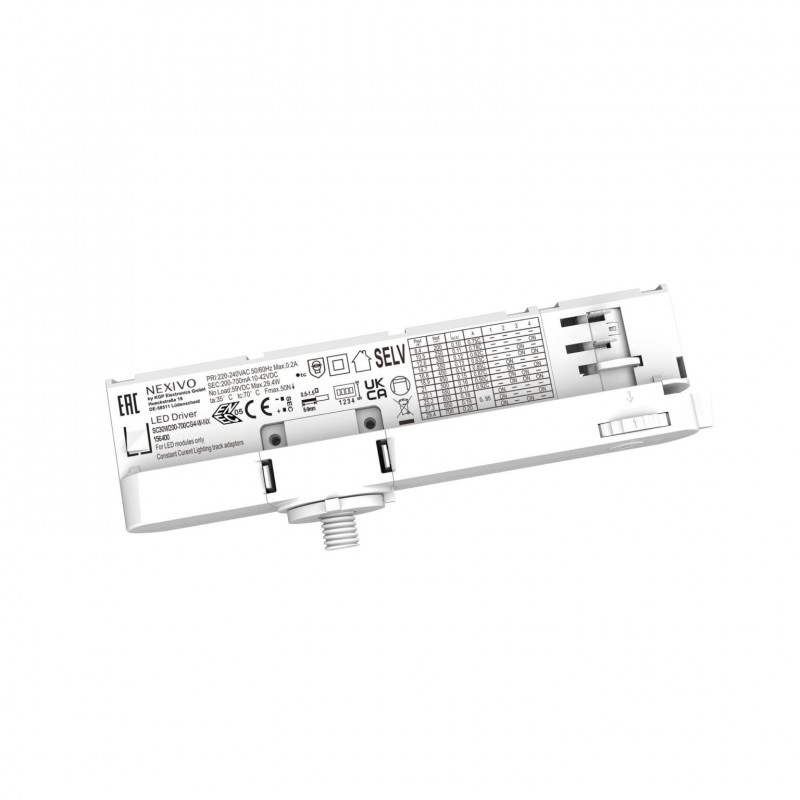

SC30W200-700CG4-W-NX - 156400 - NEXIVO by KGP GMBH - Driver LED - Courant constant - Courant de sortie 200-700 mA - Puissance de sortie 2-29,4 W - Tension de sortie 10-42 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 30% - Rendement ≥ 91% - Isolation - Class II - IP20 - Independent - Dimensions 158 x 31 x 45 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

LAS CODE 156400
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming ON OFF
Output Type Constant Current
Min Output Current mA 200
Min Input Voltage V 10
Max Output Voltage in V 700
Max Output Voltage in V 42
Remote or Built In Independent
IP RATING IP20
How To Program the Current? DIP switches
Length 158
Width 31
Heigth 45
KGP EQUIVALENT MODEL SC30W200-700CG4-W
