LINLED 274X24MM DAISY-7X1 ZT25 4C LED MODULES

Reference LinLED 274x24mm DAISY-7X1 ZT25 4C

Up to 195lm/W - DAISY-7X1 ZT25 SELV modules

Description

Reference LinLED 274x24mm DAISY-7X1 ZT25 4C

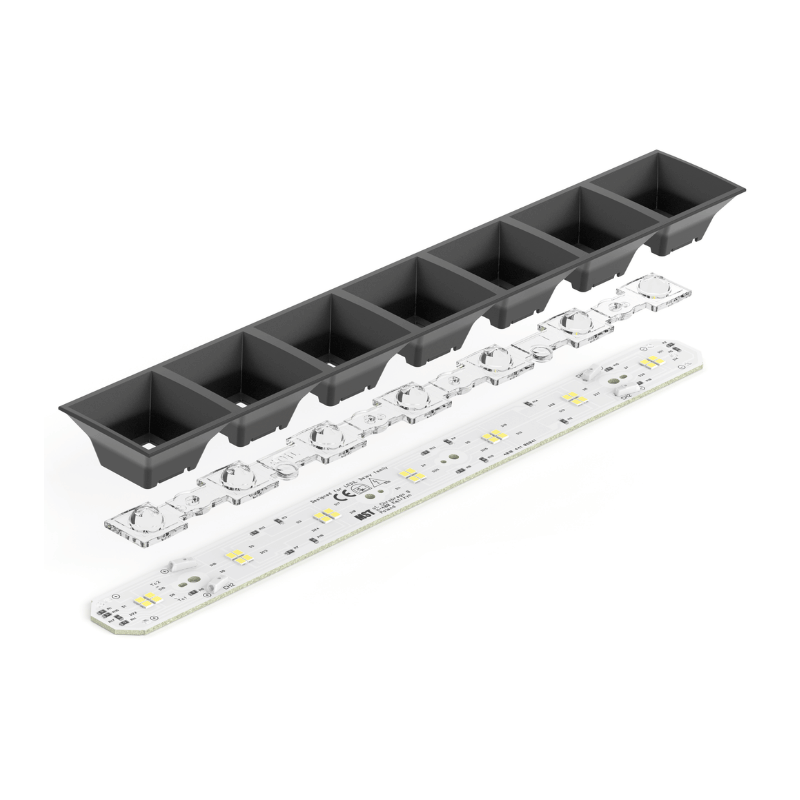

MST built-in constant-current linear LED modules for premium indoor lighting, optimized for LEDiL DAISY-7X1 optics. ZT25 versions are dedicated to DAISY 7x1 ZT-25, 7x1-WAS and 7x1-O optics.
274x24mm format, four-connector 4C SELV parallel system, distinct from the 280mm DAISY families. Listed fixed-white temperatures: 3000K and 4000K.
CRI 80 B-27 G4 nominal 1600lm/21V variants: 450mA, 19V forward voltage and 8.5W, delivering 1552lm at 3000K or 1667lm at 4000K, up to 195lm/W. Current range 10-1500mA.
CRI 80 CJ G4 nominal 1100lm/42V variants: 160mA, 39V, 6.3W, 1097lm at 3000K or 1141lm at 4000K, up to 181lm/W. Current range 10-450mA.
CRI 90 nominal 1100lm/42V variants: 155mA, 40V, 6.1W, 1093lm at 3000K or 1155lm at 4000K, up to 188lm/W. Current range 10-200mA.
The CRI 90 family is labelled S8 K G7 in the performance table but S7 K G7 in the ordering table. The same two ordering codes are retained; confirm the LED-family designation with MST before ordering.
Maximum 8 modules in parallel; use modules from the same V-code group for uniform luminous intensity. Working-voltage rating 60Vdc.
120° beam angle, 3 SDCM and RG1 unlimited. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, RoHS and REACH compliant; ENEC is not declared.
Re-workable push-in terminals accept 0.2-0.5mm² solid or flexible wires, with a 7mm strip length.
No standalone IP rating; suitable protection must be provided by the luminaire or enclosing system.
B-27 G4 CRI 80 1600lm, 3000K / 4000K ordering codes: 1010 147 98246; 1010 147 98346.
CJ G4 CRI 80 1100lm, 3000K / 4000K ordering codes: 1010 137 17346; 1010 137 17446.
CRI 90 1100lm, 3000K / 4000K; S8/S7 K G7 designation to confirm ordering codes: 1010 137 92046; 1010 137 92146.
