LINLED 550LM 18V PER 1FT 2C LED MODULES

Reference LinLED 550lm 18V per 1ft 2C

Up to 209lm/W - slim 2C linear modules

Description

Reference LinLED 550lm 18V per 1ft 2C

MST built-in constant-current linear LED modules with a two-connector 2C series system for non-SELV operation.

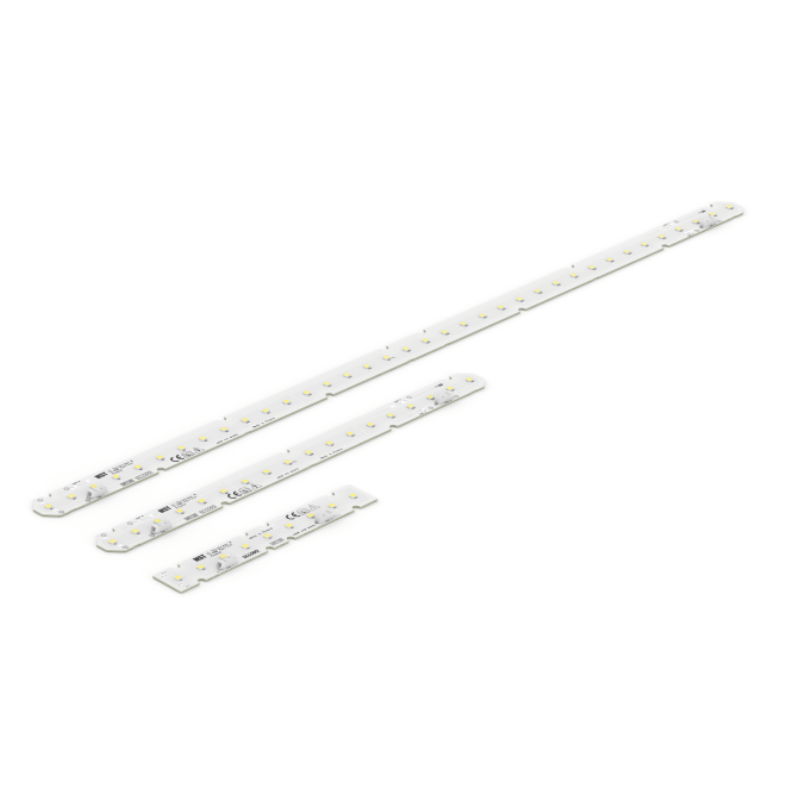

140x20mm nominal 275lm/9V, 280x20mm nominal 550lm/18V and 560x20mm nominal 1100lm/36V formats.
3000K and 4000K variants. CRI 80: S8 G5, CJ G4, CN G3 and LG G2. CRI 90: S8 K G7, S5 K G6 and EH1.1 G3. Other CCT and CRI on request.
S8 G5 280mm at 4000K: 160mA, 16V forward voltage, 2.6W and 534lm, up to 209lm/W. The 560mm version delivers 1069lm at 5.1W.
S8 K G7 CRI 90 280mm at 4000K: 175mA, 16V, 2.8W and 577lm, up to 206lm/W.
Series limits: 36 modules of 140mm, 18 of 280mm or 9 of 560mm; mixed lengths must not exceed 5040mm total.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
CE, ENEC, RoHS and REACH compliant. Built-in modules require suitable luminaire protection; no standalone IP rating.
S8 G5 3000K: 140 / 280 / 560mm ordering codes: 1010 157 13946; 1010 157 14046; 1010 157 14146.
S8 G5 4000K: 140 / 280 / 560mm ordering codes: 1010 157 14246; 1010 157 14346; 1010 157 14446.
CJ G4 3000K: 140 / 280 / 560mm ordering codes: 1010 137 34046; 1010 137 34146; 1010 137 34246.
CJ G4 4000K: 140 / 280 / 560mm ordering codes: 1010 137 34346; 1010 137 34446; 1010 137 34546.
CN G3 3000K: 140 / 280 / 560mm ordering codes: 1010 147 29746; 1010 147 29846; 1010 147 29946.
CN G3 4000K: 140 / 280 / 560mm ordering codes: 1010 147 30046; 1010 147 30146; 1010 147 30246.
LG G2 3000K: 140 / 280 / 560mm ordering codes: 1010 147 29146; 1010 147 29246; 1010 147 29346.
LG G2 4000K: 140 / 280 / 560mm ordering codes: 1010 147 29446; 1010 147 29546; 1010 147 29646.
S8 K G7 3000K: 140 / 280 / 560mm ordering codes: 1010 147 31546; 1010 147 31646; 1010 147 31746.
S8 K G7 4000K: 140 / 280 / 560mm ordering codes: 1010 147 31846; 1010 147 31946; 1010 147 32046.
S5 K G6 3000K: 140 / 280 / 560mm ordering codes: 1010 147 45046; 1010 147 45146; 1010 147 45246.
S5 K G6 4000K: 140 / 280 / 560mm ordering codes: 1010 147 45346; 1010 147 45446; 1010 147 45546.
EH1.1 G3 3000K: 140 / 280 / 560mm ordering codes: 1010 117 33946; 1010 117 34846; 1010 117 35146.
EH1.1 G3 4000K: 140 / 280 / 560mm ordering codes: 1010 117 34046; 1010 117 34946; 1010 117 35246.
