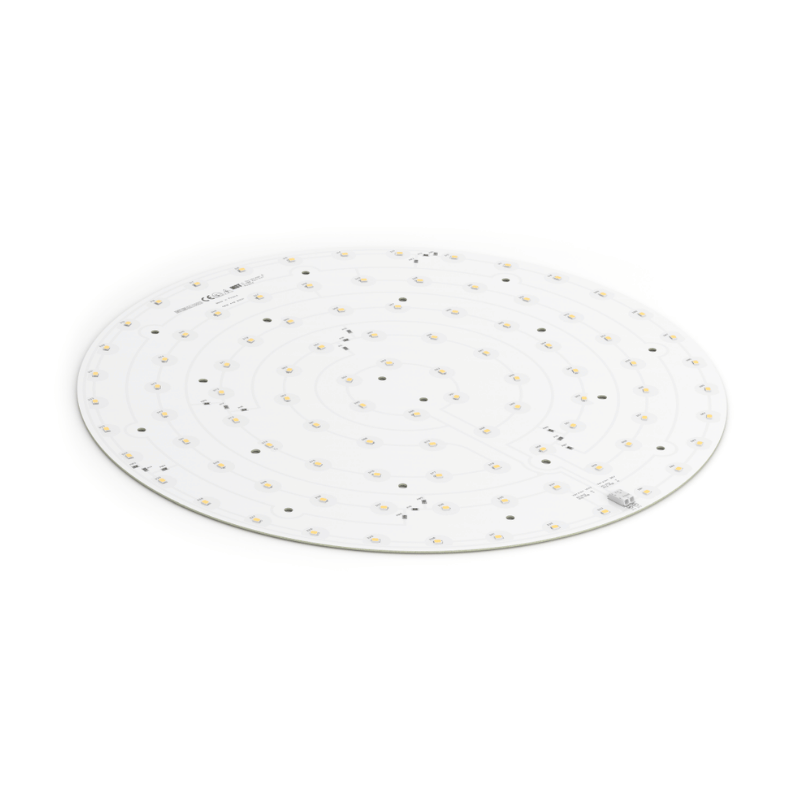

RDLED 350MM LED MODULES

Reference RdLED 350mm

Up to 194lm/W - round fixed and tunable-white modules

Description

Reference RdLED 350mm

MST built-in constant-current round LED modules, 350mm, nominal 4000lm class, with 36V and 144V product designations.
CRI 80 CJ G4, CN G3 and LG G2 families include fixed-white 3000K/4000K and tunable-white 2700-6500K variants. CRI 90 EH1.1 G3 is listed at 2700K, 3000K and 4000K.
CJ G4 fixed-white at 4000K delivers 4184lm at 22W, up to 194lm/W. The 36V designation uses 660mA at 33V forward voltage; the 144V designation uses 165mA at 130V.
CN G3 fixed-white at 4000K delivers 4180lm at 22W, up to 187lm/W. EH1.1 G3 CRI 90 at 4000K delivers 4256lm for the 36V designation or 4306lm for 144V, at 27W.
Dedicated warm-white and cool-white connections are shown for tunable-white versions; select a compatible driver and follow the variant-specific current limits.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
CE, ENEC, RoHS and REACH compliant. Built-in modules require suitable luminaire protection; no standalone IP rating.
CJ G4 tunable white, 36V / 144V ordering codes: 1010 147 72946; 1010 147 73046.
CJ G4 fixed white: 3000K 36V / 144V, then 4000K 36V / 144V ordering codes: 1010 147 72546; 1010 147 72746; 1010 147 72646; 1010 147 72846.
CN G3 tunable white, 36V / 144V ordering codes: 1010 137 99546; 1010 137 82246.
CN G3 fixed white: 3000K 36V / 144V, then 4000K 36V / 144V ordering codes: 1010 147 36846; 1010 147 37046; 1010 147 36946; 1010 147 37146.
LG G2 tunable white, 36V / 144V ordering codes: 1010 147 72346; 1010 147 72446.
LG G2 fixed white: 3000K 36V / 144V, then 4000K 36V / 144V ordering codes: 1010 147 71946; 1010 147 72146; 1010 147 72046; 1010 147 72246.
EH1.1 G3: 2700K 36V / 144V, 3000K 36V / 144V, 4000K 36V / 144V ordering codes: 1010 117 68846; 1010 117 68546; 1010 117 68946; 1010 117 68646; 1010 117 69046; 1010 117 68746.
