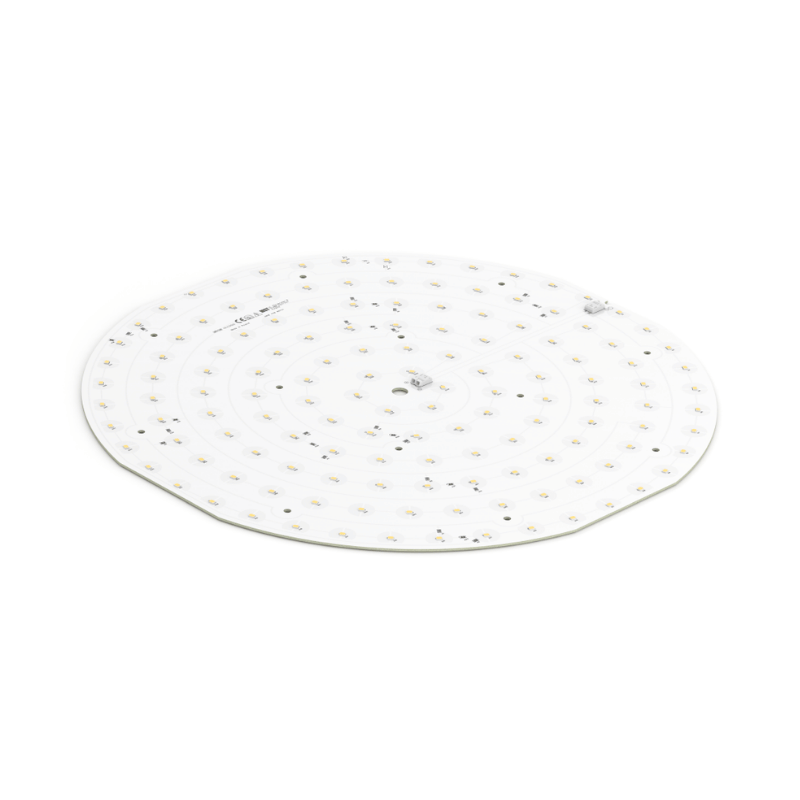

RDLED 400MM LED MODULES

Reference RdLED 400mm

Up to 200lm/W - round 400mm LED modules

Description

Reference RdLED 400mm

MST built-in constant-current round LED modules, 400mm, with nominal 4000lm fixed-white and 4200lm tunable-white designations.
Fixed-white CRI 80 CJ G4, CN G3 and LG G2 variants at 3000K and 4000K, with 42V or 105V product designations.
CJ G4 at 4000K delivers 4125lm at 21W, up to 200lm/W. The 42V designation uses 550mA at 37V forward voltage; the 105V designation uses 220mA at 94V.
CN G3 fixed-white at 4000K delivers 4183lm at 22W, up to 193lm/W. LG G2 delivers 4186lm for the 42V designation or 4169lm for 105V, at 23W.
Tunable-white 2700-6500K versions use a 33V nominal designation: CN G3 CRI 80 delivers 4038lm warm white or 4381lm cool white at 780mA and 23W; EH1.1 G3 CRI 90 delivers 4097lm or 4353lm at 810mA and 25W.
Dedicated warm-white and cool-white wiring is provided for tunable-white variants; follow the driver and variant-specific current requirements.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
CE, ENEC, RoHS and REACH compliant. Built-in modules require suitable luminaire protection; no standalone IP rating.
CJ G4 42V, 3000K / 4000K ordering codes: 1010 147 77146; 1010 147 77246.
CJ G4 105V, 3000K / 4000K ordering codes: 1010 137 55346; 1010 137 68646.
CN G3 tunable white 33V ordering codes: 1010 137 25046.
CN G3 fixed white: 3000K 42V / 105V, then 4000K 42V / 105V ordering codes: 1010 147 76746; 1010 147 76946; 1010 147 76846; 1010 147 77046.
LG G2 fixed white: 3000K 42V / 105V, then 4000K 42V / 105V ordering codes: 1010 147 76346; 1010 147 76546; 1010 147 76446; 1010 147 76646.
EH1.1 G3 tunable white 33V ordering codes: 1010 127 72946.
