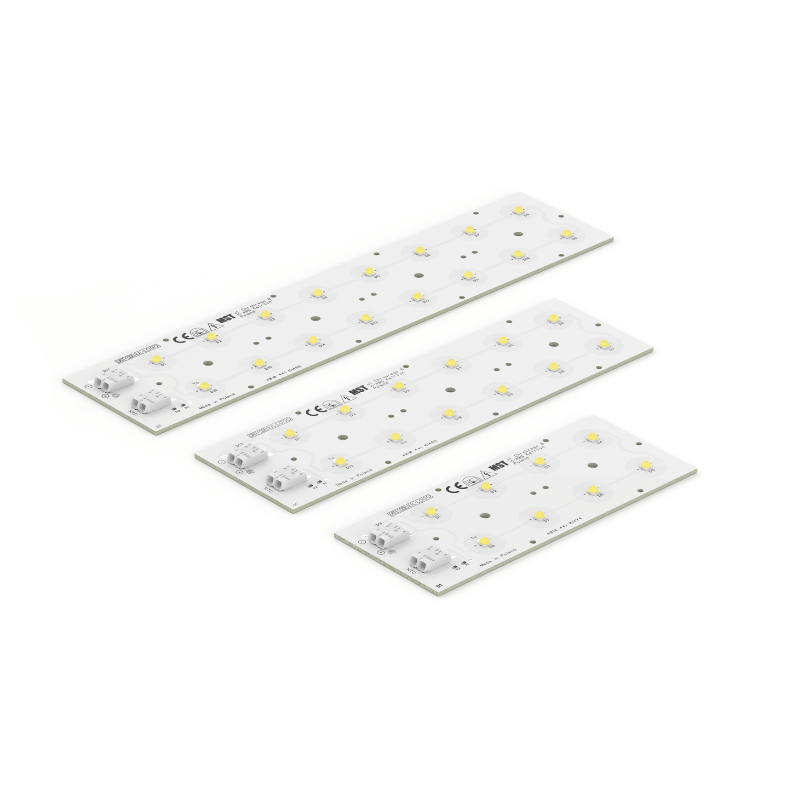

OUTDOOR LED MODULES 3535
Outdoor LED modules 3535
Up to 190lm/W - 3535 outdoor modules
Description
Outdoor LED modules 3535
- MST built-in constant-current rectangular LED modules for outdoor luminaires, compatible with standard 2x2 optics including LEDiL STRADA-2X2.
- 122x50mm 2x4, 173x50mm 2x6 and 224x50mm 2x8 formats, with 1900lm/24V, 2900lm/36V and 3800lm/48V nominal designations.
- CRI 70 C3S G2 and SE2 G2 families, each available with or without a 10kΩ NTC thermistor; 3000K and 4000K versions.
- At 480mA, C3S G2 4000K versions deliver 2012, 3018 or 4024lm, with 11, 16 or 21W nominal power and efficacy up to 190lm/W. Forward voltages: 22, 33 and 44V.
- SE2 G2 reaches 187lm/W at 4000K. Current range for both families: 100-1500mA.
- 128° beam angle, 5 SDCM and RG2 photobiological safety. Rated performance temperature 55°C; maximum safe case temperature 95°C.
- Maximum series quantities: 17 modules for 122mm, 11 for 173mm and 8 for 224mm. CE, ENEC, ENEC+, RoHS and REACH compliant.
- Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
- Built-in LED modules require suitable luminaire protection; no standalone IP rating.
- C3S NTC G2, 3000K: 122 / 173 / 224mm ordering codes: 1010 137 84246; 1010 137 84746; 1010 137 85246.
- C3S NTC G2, 4000K: 122 / 173 / 224mm ordering codes: 1010 137 84346; 1010 137 84846; 1010 137 85346.
- C3S G2, 3000K: 122 / 173 / 224mm ordering codes: 1010 137 85746; 1010 137 86246; 1010 137 86746.
- C3S G2, 4000K: 122 / 173 / 224mm ordering codes: 1010 137 85846; 1010 137 86346; 1010 137 86846.
- SE2 NTC G2, 3000K: 122 / 173 / 224mm ordering codes: 1010 137 87246; 1010 137 87746; 1010 137 88246.
- SE2 NTC G2, 4000K: 122 / 173 / 224mm ordering codes: 1010 137 87346; 1010 137 87846; 1010 137 88346.
- SE2 G2, 3000K: 122 / 173 / 224mm ordering codes: 1010 137 88746; 1010 137 89246; 1010 137 89746.
- SE2 G2, 4000K: 122 / 173 / 224mm ordering codes: 1010 137 88846; 1010 137 89346; 1010 137 89846.
-
