• New
CV100W24CG-Triac-NX
  • CV100W24CG-Triac-NX
Attachments
Download
DATASHEET

CV100W24CG-Triac-NX.pdf

Download (274.19k)

CV100W24CG-Triac-NX

158830
Description

158830

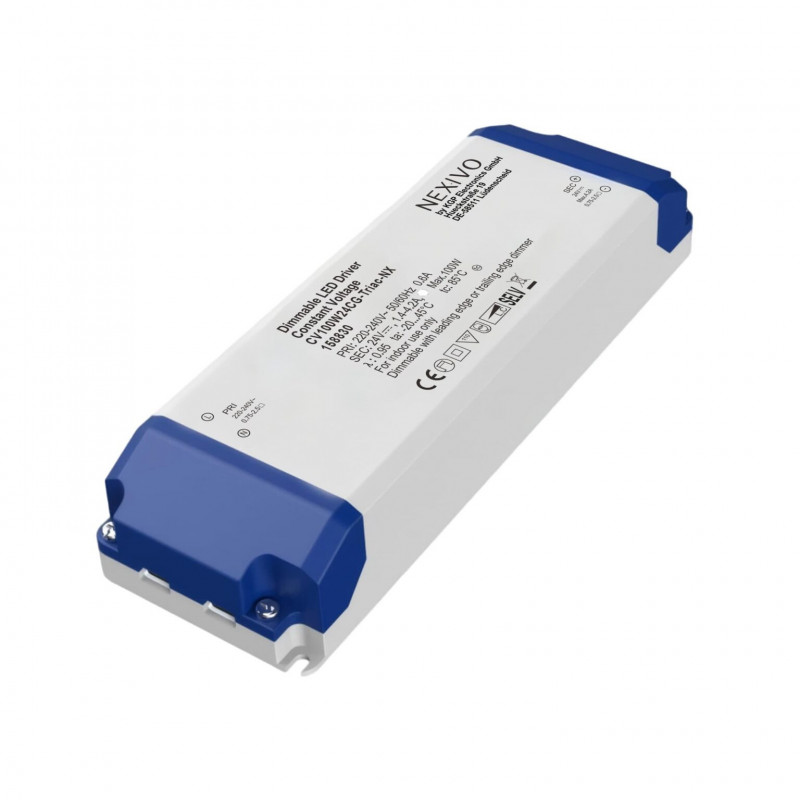

CV100W24CG-Triac-NX - 158830 - NEXIVO by KGP GMBH - Driver LED dimmable - Tension constante - Courant de sortie 1400-4200 mA - Puissance 33-100 W - Tension de sortie 24-24 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 15% - Rendement 91-91% - Isolation - Class II - IP20 - Independent - Dimensions 210 x 67 x 34 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE 129851
LAS CODE 158830
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming TRIAC
Output Type Constant Voltage
Min Output Current mA 1400
Min Input Voltage V 24
Max Output Voltage in V 4200
Max Output Voltage in V 24
Remote or Built In Independent
IP RATING IP20
How To Program the Current? N/A
Length 210
Width 67
Heigth 34
KGP EQUIVALENT MODEL CV100W24CG-Triac
  • 24H Shipping 24H Shipping
