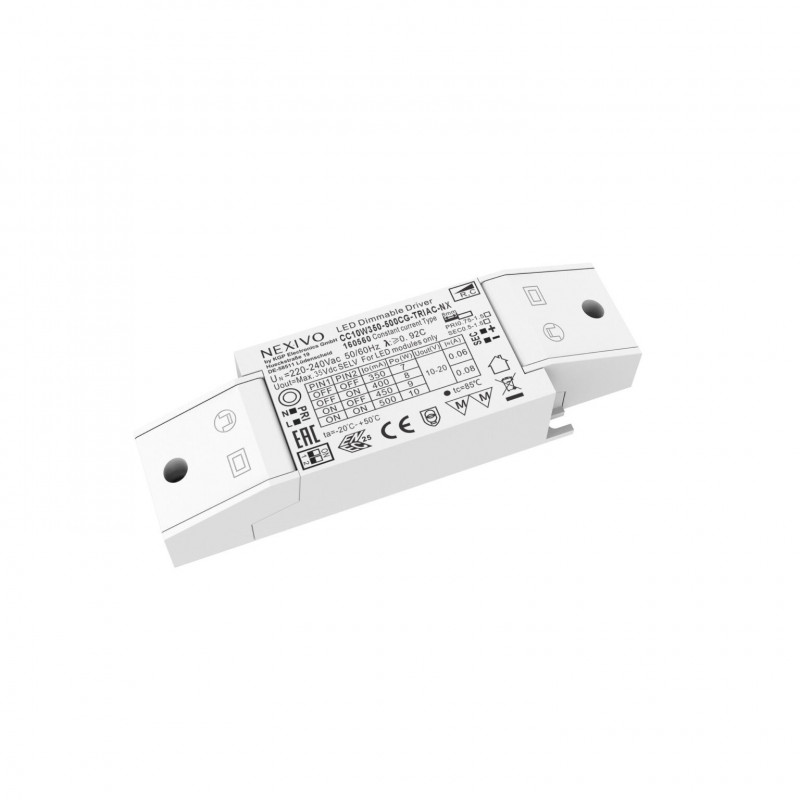

CC10W350-500CG-TRIAC-NX
  • CC10W350-500CG-TRIAC-NX
Attachments
Download
DATASHEET

CC10W350-500CG-TRIAC-NX.pdf

Download (586.56k)

CC10W350-500CG-TRIAC-NX

160560
Description

160560

CC10W350-500CG-TRIAC-NX - 160560 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 350-500 mA - Puissance de sortie 4,2-10 W - Tension de sortie 12-20 V - Tension d’entrée 220-240 VAC - PF ≥ 0,92 - Rendement ≥ 81% - Isolation - Class II - IP20 - Independent / Built-in - Dimensions 129 x 44 x 23 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE 121801
LAS CODE 160560
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming TRIAC
Output Type Constant Current
Min Output Current mA 350
Min Input Voltage V 12
Max Output Voltage in V 500
Max Output Voltage in V 20
Remote or Built In Independent / Built-in
IP RATING IP20
How To Program the Current? DIP switches
Length 129
Width 44
Heigth 23
KGP EQUIVALENT MODEL CC10W350-500CG-TRIAC
