SC42W300-1050CG4-W-IOT-2CH-NFC-NX
  • SC42W300-1050CG4-W-IOT-2CH-NFC-NX
Attachments
Download
DATASHEET

SC42W300-1050CG4-W-IOT-2CH-NFC-NX.pdf

Download (858.83k)

SC42W300-1050CG4-W-IOT-2CH-NFC-NX

157430
Description

157430

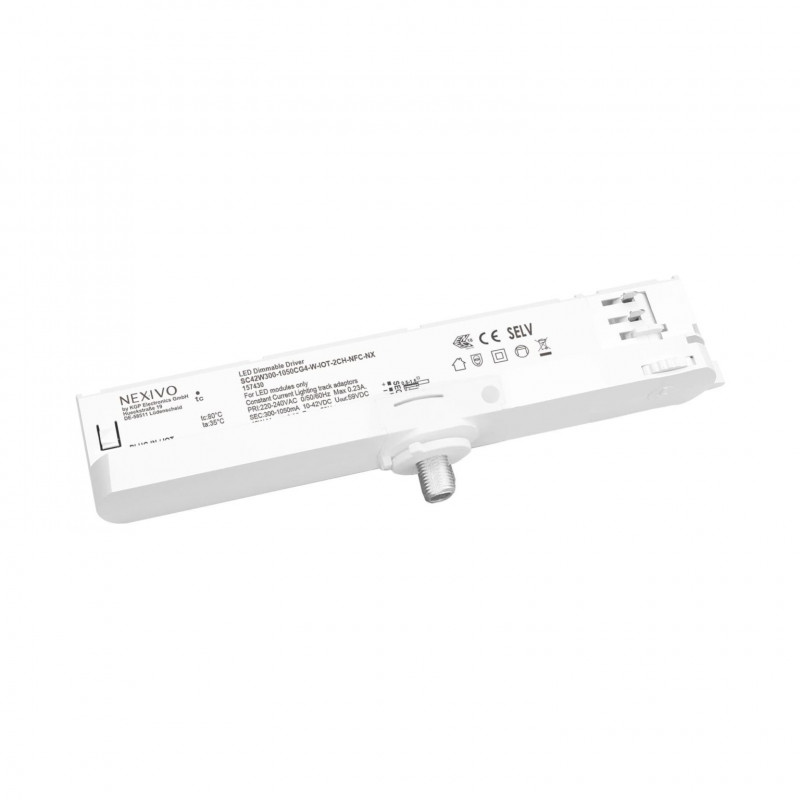

SC42W300-1050CG4-W-IOT-2CH-NFC-NX - 157430 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 300-1050 mA - Puissance de sortie 3-42 W - Tension de sortie 10-42 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - Rendement ≥ 88% - Isolation - Class II - IP20 - Independent - Dimensions 217,7 x 31,1 x 42,2 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

LAS CODE 157430
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming CASAMBI
Output Type Constant Current
Min Output Current mA 300
Min Input Voltage V 10
Max Output Voltage in V 42
Max Output Voltage in V 1050
Remote or Built In Independent
IP RATING IP20
How To Program the Current? NFC
Length 217.7
Width 31.1
Heigth 42.2
KGP EQUIVALENT MODEL SC42W300-1050CG4-W-IOT-2CH-NFC
