• New
LC80W350-500NS-NX
  • LC80W350-500NS-NX
Attachments
Download
DATASHEET

LC80W350-500NS-NX.pdf

Download (2.21M)

LC80W350-500NS-NX

158140
Description

158140

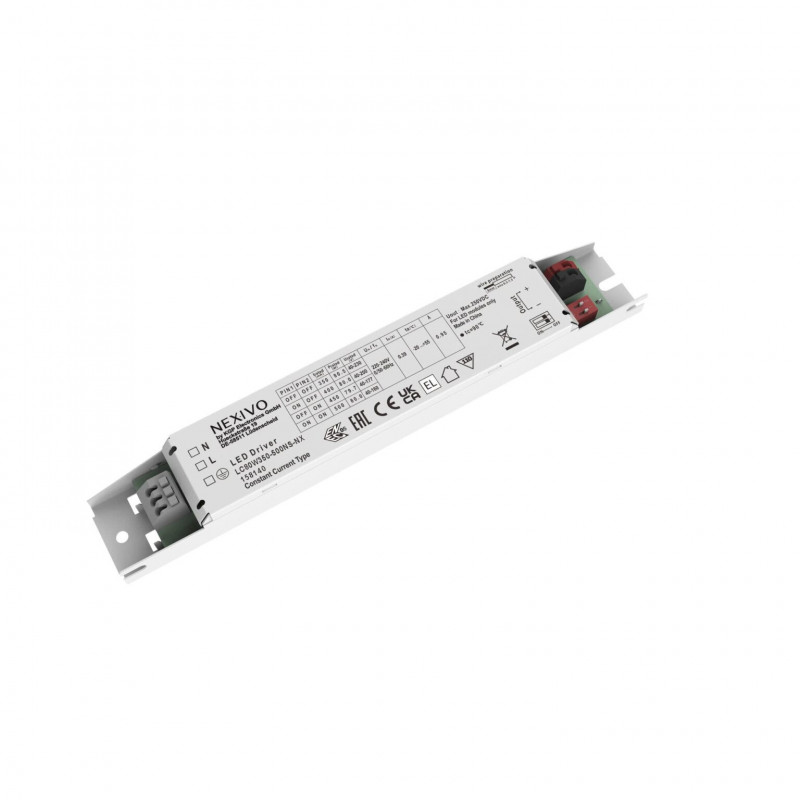

LC80W350-500NS-NX - 158140 - NEXIVO by KGP GMBH - Driver LED - Courant constant - Courant de sortie 350-500 mA - Puissance 14-80,5 W - Tension de sortie 40-230 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 15% - Rendement 93-94% - Non-Isolation - Class I - IP20 - Built-in - Dimensions 165 x 30 x 21 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

LAS CODE 158140
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming ON OFF
Output Type Constant Current
Min Output Current mA 350
Min Input Voltage V 40
Max Output Voltage in V 500
Max Output Voltage in V 230
Remote or Built In Built-in
IP RATING IP20
How To Program the Current? DIP switches
Length 165
Width 30
Heigth 21
KGP EQUIVALENT MODEL LC80W350-500NS
