• New

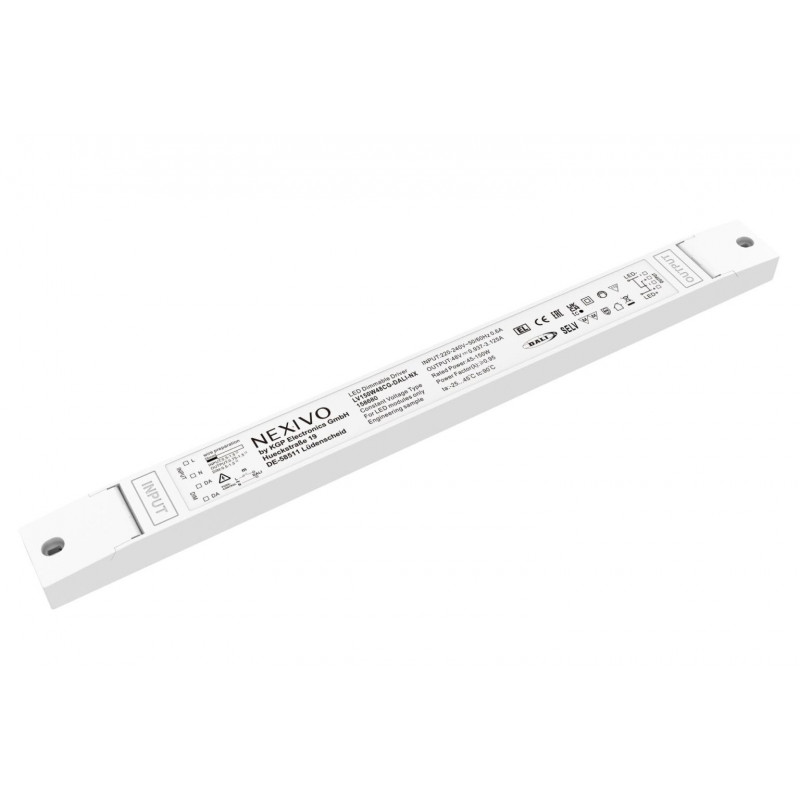

LV150W48CG-DALI-NX
  • LV150W48CG-DALI-NX
Attachments
Download
DATASHEET

LV150W48CG-DALI-NX.pdf

Download (1.55M)

LV150W48CG-DALI-NX

158680
Description

158680

LV150W48CG-DALI-NX - 158680 - NEXIVO by KGP GMBH - Dimmable Driver LED - Tension constante - Courant de sortie 937-3125 mA - Puissance 45-150 W - Tension de sortie 48-48 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 7% - Rendement 92-92% - Isolation SELV - Class II - IP20 - Independent - Dimensions 350 x 30 x 18 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE 151111
LAS CODE 158680
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming DALI
Output Type Constant Voltage
Min Output Current mA 937
Min Input Voltage V 48
Max Output Voltage in V 48
Max Output Voltage in V 3125
Remote or Built In Independent
IP RATING IP20
How To Program the Current? N/A
Length 350
Width 30
Heigth 18
KGP EQUIVALENT MODEL LV150W48CG-DALI
  • 24H Shipping 24H Shipping
