SC42W300-1050CG4-W-DIM-NX
  • SC42W300-1050CG4-W-DIM-NX
Attachments
Download
DATASHEET

SC42W300-1050CG4-W-DIM-NX.pdf

Download (621.86k)

SC42W300-1050CG4-W-DIM-NX

156790
Description

156790

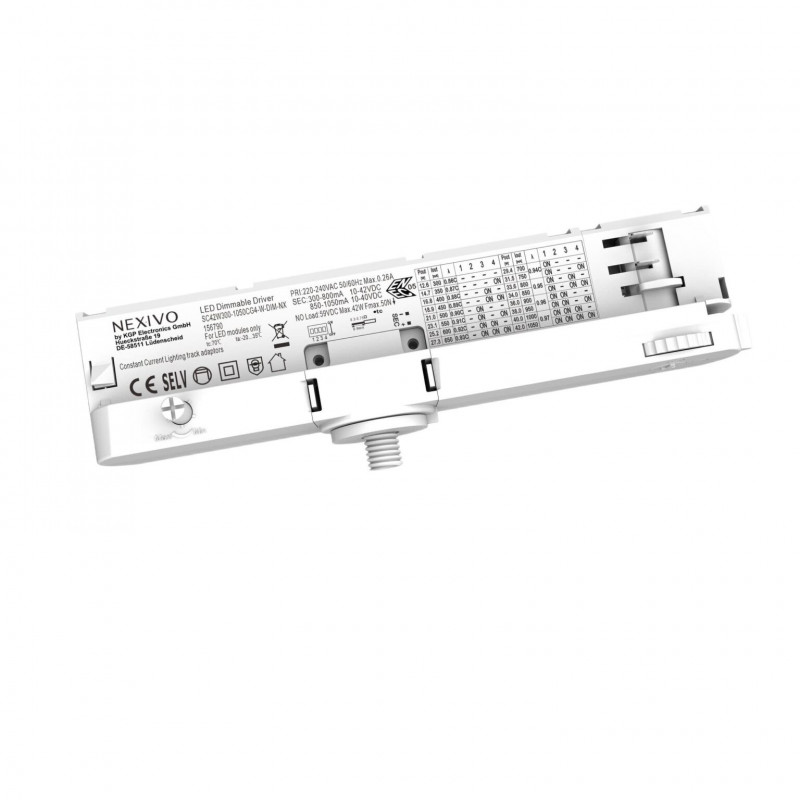

SC42W300-1050CG4-W-DIM-NX - 156790 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 300-1050 mA - Puissance de sortie 3-42 W - Tension de sortie 10-42 V - Tension d’entrée 220-240 VAC - PF ≥ 0,97 - THD ≤ 10% - Rendement ≥ 90% - Isolation - Class II - IP20 - Independent - Dimensions 178,5 x 31 x 42,1 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

LAS CODE 156790
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming 0-10V
Output Type Constant Current
Min Output Current mA 300
Min Input Voltage V 10
Max Output Voltage in V 42
Max Output Voltage in V 1050
Remote or Built In Independent
IP RATING IP20
How To Program the Current? DIP switches
Length 178.5
Width 31
Heigth 42.1
KGP EQUIVALENT MODEL SC42W300-1050CG4-W-DIM
