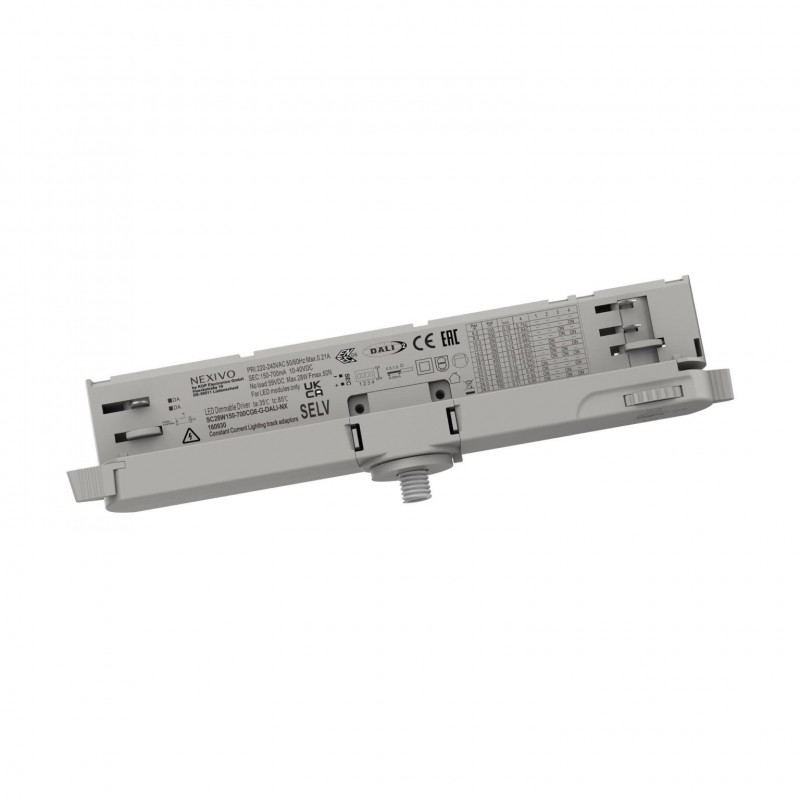

SC28W150-700CG6-G-DALI-NX
  • SC28W150-700CG6-G-DALI-NX
Attachments
Download
Datasheet

SC28W150-700CG6-G-DALI-NX1190

Download (1.07M)

SC28W150-700CG6-G-DALI-NX

160930
Description

160930

SC28W150-700CG6-G-DALI-NX - 160930 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 150-700 mA - Puissance de sortie 1,5-28 W - Tension de sortie 10-40 V - Tension d’entrée 220-240 VAC - PF ≥ 0,92 - THD ≤ 20% - Rendement ≥ 91% - Isolation - Class II - IP20 - Independent - Dimensions 217,8 x 31,1 x 42,2 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

LAS CODE 160930
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming DALI
Output Type Constant Current
Min Output Current mA 150
Min Input Voltage V 10
Max Output Voltage in V 700
Max Output Voltage in V 40
Remote or Built In Independent
IP RATING IP20
How To Program the Current? DIP switches
Length 217.8
Width 31.1
Heigth 42.2
KGP EQUIVALENT MODEL SC28W150-700CG6-G-DALI
