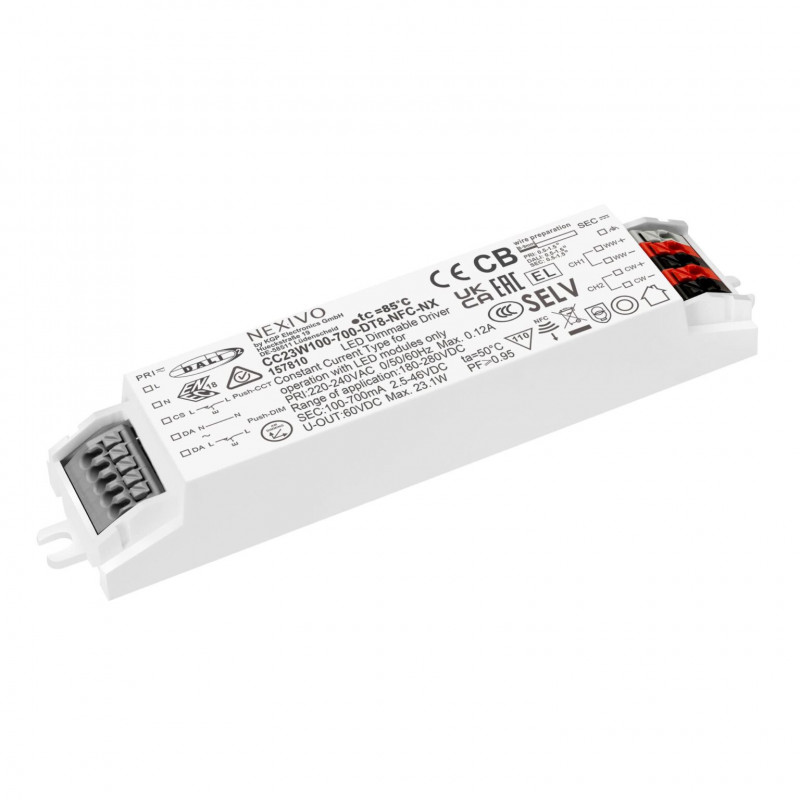

CC23W100-700-DT8-NFC-NX
  • CC23W100-700-DT8-NFC-NX
  • CC23W100-700-DT8-NFC-NX
  • CC23W100-700-DT8-NFC-NX
  • CC23W100-700-DT8-NFC-NX
Attachments
Download
DATASHEET

CC23W100-700-DT8-NFC-NX.pdf

Download (1.21M)

CC23W100-700-DT8-NFC-NX

157810
Description

157810

CC23W100-700-DT8-NFC-NX - 157810 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 100-700 mA - Puissance jusqu’à 23 W - Tension de sortie 2,5-46 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 11% - Rendement ≥ 88% - Isolation - Class II - IP20 - Built-in / Independent - Dimensions 128 x 30 x 21 mm - Durée de vie 100000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE 124091
LAS CODE 157810
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming DT8
Output Type Constant Current
Min Output Current mA 100
Min Input Voltage V 2.5
Max Output Voltage in V 700
Max Output Voltage in V 46
Remote or Built In Built-in / Independent
IP RATING IP20
How To Program the Current? NFC
Length 128
Width 30
Heigth 21
KGP EQUIVALENT MODEL CC23W100-700-DT8-NFC
