• New
CC7W100-700-TRIAC-NFC-C38-NX
  • CC7W100-700-TRIAC-NFC-C38-NX
Attachments
Download
DATASHEET

CC7W100-700-TRIAC-NFC-C38-NX.pdf

Download (794.04k)

CC7W100-700-TRIAC-NFC-C38-NX

157770
Description

157770

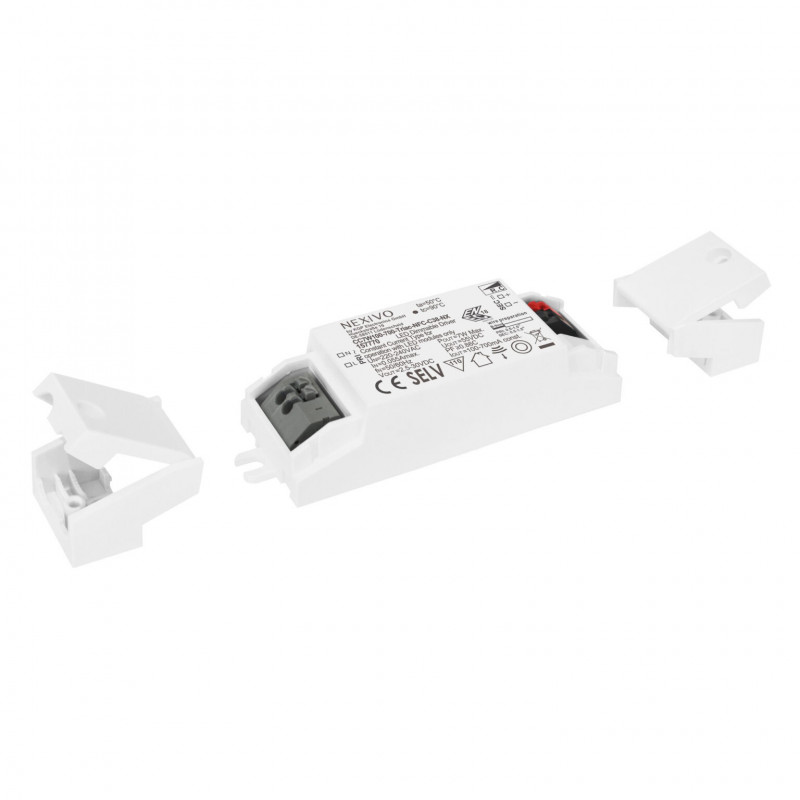

CC7W100-700-TRIAC-NFC-C38-NX - 157770 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 100-700 mA - Puissance de sortie 0,3-7 W - Tension de sortie 2,5-30 V - Tension d’entrée 220-240 VAC - PF ≥ 0,86 - Rendement ≥ 75% - Isolation - Class II - IP20 - Built-in / Independent - Dimensions 86 x 30 x 21 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

LAS CODE 157770
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming TRIAC
Output Type Constant Current
Min Output Current mA 100
Min Input Voltage V 2.5
Max Output Voltage in V 700
Max Output Voltage in V 30
Remote or Built In Built-in / Independent
IP RATING IP20
How To Program the Current? NFC
Length 86
Width 30
Heigth 21
KGP EQUIVALENT MODEL CC7W100-700-TRIAC-NFC-C38
