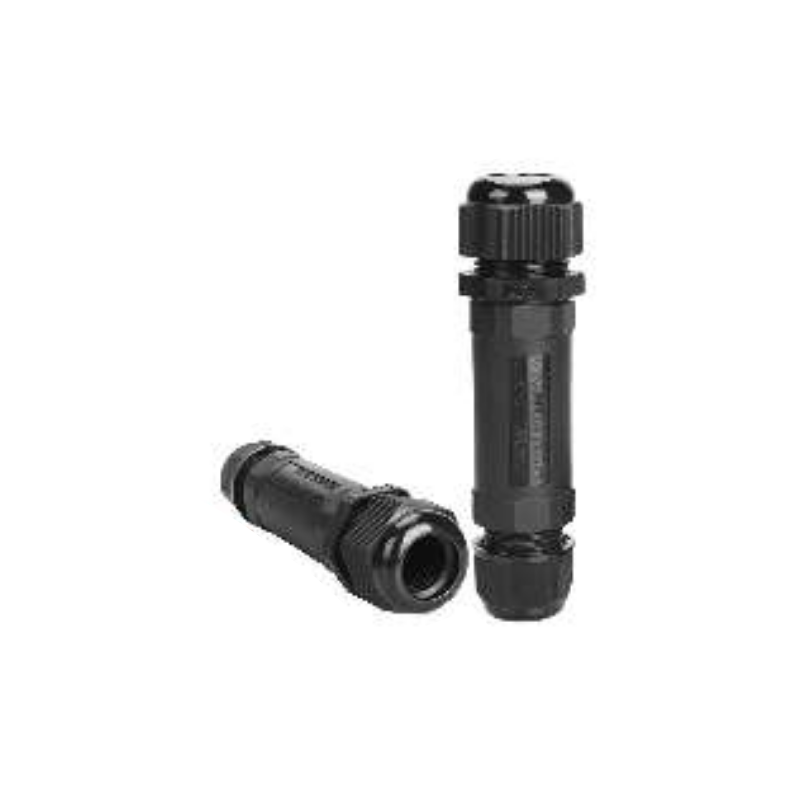

IP68 screw connector 2/3/4/5pins
Description

P‑25‑VI‑XP

  • ● IP68 screw connector for waterproof outdoor and industrial wiring
  • ● Available in 2, 3, 4 and 5‑pin versions
  • ● Screw‑terminal wiring for secure tightening
  • ● PA66 UL94 V‑0 flame‑retardant housing with silicone rubber seal
  • ● Rated 32A / 450V
  • ● Wire section up to 4mm²
  • ● Supports cable diameters 5–9mm, 9–12mm and 10–14mm
  • ● Stripping length 8–10mm
  • ● Operating temperature −40°C to +105°C
  • ● Suitable for lighting, signage, power distribution and harsh environments
