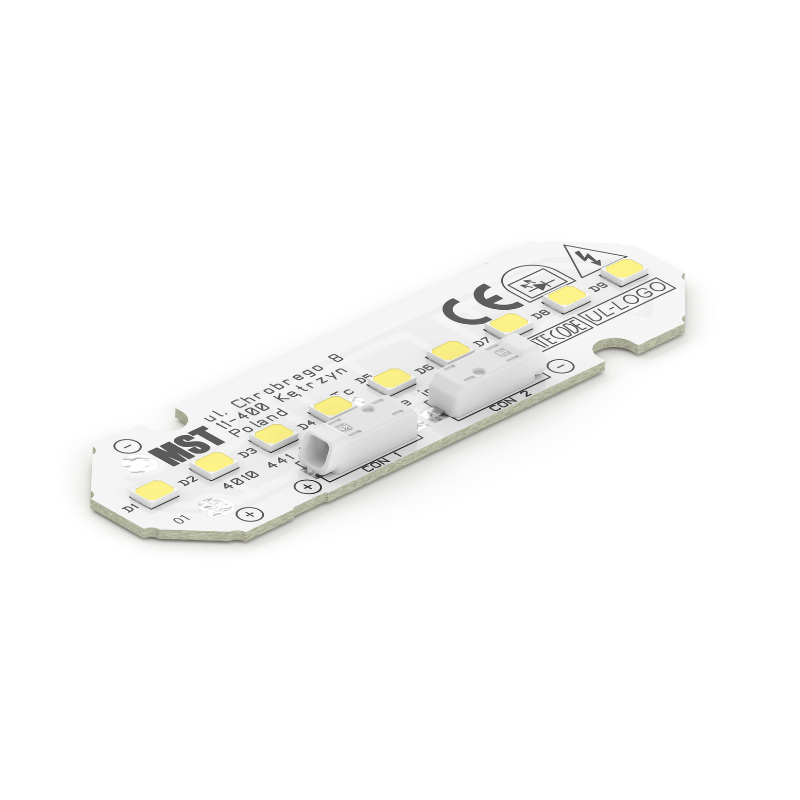

LINLED 1100LM 24V PER 1FT 2C LED MODULES

LinLED 1100lm 24V per 1ft 2C
Up to 223lm/W - 20mm-wide non-SELV linear modules
Description

LinLED 1100lm 24V per 1ft 2C

  • MST built-in constant-current linear LED family for non-SELV series systems, nominal 1100lm/24V per 1ft.
  • Lengths: 70, 140, 280, 560, 1120 and 1400mm, all 20mm wide, with nominal designations from 275lm/6V to 5500lm/120V. The 1120mm and 1400mm variants are designated 2C+R; shorter versions are 2C.
  • CRI 80 families: SW2-30 K G8 (280/560mm), S8 G5, CJ G4, CN G3 and ST5 G2. CRI 90 S8 K G7, S5 K G6 and EH1.1 G3 are listed in 70-560mm lengths. Listed fixed-white temperatures are 3000K and 4000K.
  • SW2-30 K G8 CRI 80 280mm at 4000K: 240mA, 21V forward voltage, 5.1W and 1138lm, up to 223lm/W. Its 560mm version delivers 2277lm at 43V and 10W.
  • S8 G5 280mm at 4000K delivers 1155lm at 260mA and 5.6W, up to 207lm/W. S8 K G7 CRI 90 280mm at 4000K delivers 1142lm at 260mA and 5.6W, up to 205lm/W.
  • Series limits by length: 53 modules of 70mm, 27 of 140mm, 13 of 280mm, 6 of 560mm, 3 of 1120mm or 2 of 1400mm. Mixed lengths must not exceed 3780mm, subject to individual configuration limits.
  • 120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
  • Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
  • No standalone IP rating; suitable protection must be provided by the luminaire.
  • SW2-30 K G8 3000K: 280 / 560mm ordering codes: 1010 157 17046; 1010 157 17146.
  • SW2-30 K G8 4000K: 280 / 560mm ordering codes: 1010 157 17246; 1010 157 17346.
  • S8 G5 3000K: 70 / 140 / 280 / 560 / 1120 / 1400mm ordering codes: 1010 157 10146; 1010 157 10246; 1010 157 10346; 1010 157 10446; 1010 157 10546; 1010 157 10646.
  • S8 G5 4000K: 70 / 140 / 280 / 560 / 1120 / 1400mm ordering codes: 1010 157 10746; 1010 157 10846; 1010 157 10946; 1010 157 11046; 1010 157 11146; 1010 157 11246.
  • CJ G4 3000K: 70 / 140 / 280 / 560mm ordering codes: 1010 127 96546; 1010 127 96646; 1010 127 96746; 1010 127 96846.
  • CJ G4 3000K: 1120 / 1400mm ordering codes: 1010 157 19646; 1010 157 19746.
  • CJ G4 4000K: 70 / 140 / 280 / 560mm ordering codes: 1010 127 96946; 1010 127 97046; 1010 127 97146; 1010 127 97246.
  • CJ G4 4000K: 1120 / 1400mm ordering codes: 1010 157 19846; 1010 157 19946.
  • CN G3 3000K: 70 / 140 / 280 / 560 / 1120 / 1400mm ordering codes: 1010 137 63146; 1010 137 63246; 1010 137 63346; 1010 137 63446; 1010 137 63546; 1010 137 63646.
  • CN G3 4000K: 70 / 140 / 280 / 560 / 1120 / 1400mm ordering codes: 1010 137 63746; 1010 137 63846; 1010 137 63946; 1010 137 64046; 1010 137 64146; 1010 137 64246.
  • ST5 G2 3000K: 70 / 140 / 280 / 560 / 1120 / 1400mm ordering codes: 1010 147 09046; 1010 147 09146; 1010 147 09246; 1010 147 09346; 1010 147 97646; 1010 147 97746.
  • ST5 G2 4000K: 70 / 140 / 280 / 560 / 1120mm ordering codes: 1010 147 09446; 1010 147 09546; 1010 147 09646; 1010 147 09746; 1010 147 97846.
  • ST5 G2 4000K: 1400mm ordering codes: 1010 137 68946.
  • S8 K G7 3000K: 70 / 140 / 280 / 560mm ordering codes: 1010 147 28546; 1010 147 28646; 1010 147 28746; 1010 147 28846.
  • S8 K G7 4000K: 70 / 140mm ordering codes: 1010 147 28946; 1010 147 29046.
  • S8 K G7 4000K: 280 / 560mm ordering codes: 1010 137 66446; 1010 137 66546.
  • S5 K G6 3000K: 70 / 140 / 280 / 560mm ordering codes: 1010 147 46846; 1010 147 46946; 1010 147 47046; 1010 147 47146.
  • S5 K G6 4000K: 70 / 140 / 280 / 560mm ordering codes: 1010 147 47246; 1010 147 47346; 1010 147 47446; 1010 147 47546.
  • EH1.1 G3 3000K: 70mm ordering codes: 1010 127 20246.
  • EH1.1 G3 3000K: 140 / 280 / 560mm ordering codes: 1010 157 11346; 1010 157 11446; 1010 157 11546.
  • EH1.1 G3 4000K: 70 / 140mm ordering codes: 1010 127 20346; 1010 127 44346.
  • EH1.1 G3 4000K: 280mm ordering codes: 1010 117 94246.
  • EH1.1 G3 4000K: 560mm ordering codes: 1010 127 31046.
