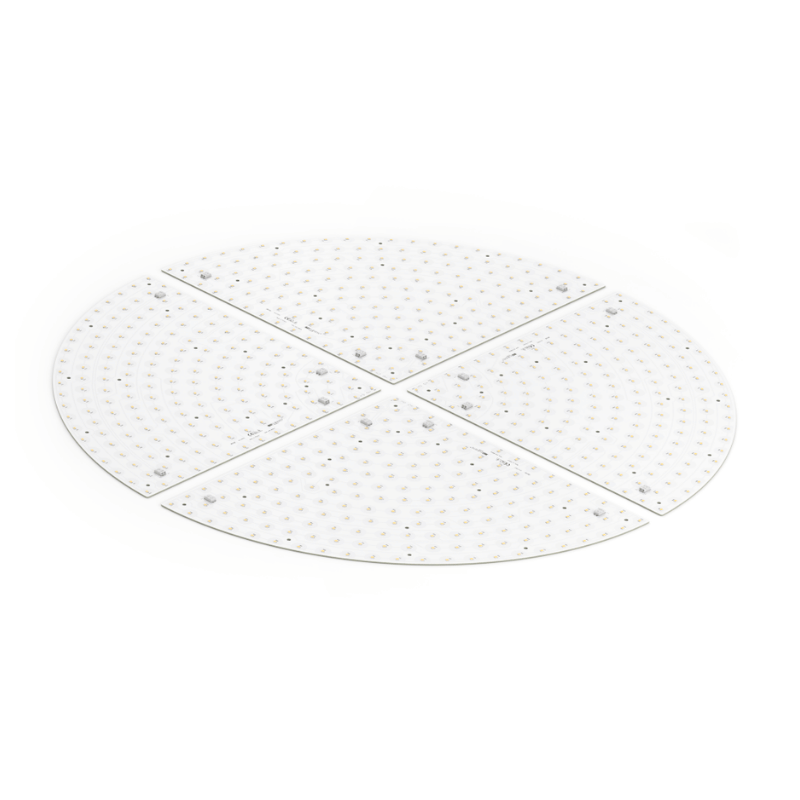

RDLED 1/4 800MM LED MODULES

RdLED 1/4 800mm
Up to 205lm/W - quarter-round 800mm modules
Description

RdLED 1/4 800mm

  • MST built-in constant-current quarter-round LED modules for 800mm circular lighting systems, nominal 3000lm / 33V designation.
  • CRI 80 CJ G4 and CN G3; CRI 90 EH1.1 G3. Fixed-white 3000K and 4000K versions, plus a listed 2700K EH1.1 version and 2700-6500K tunable-white CN G3 and EH1.1 G3 variants.
  • CJ G4 at 4000K: 530mA, 29V forward voltage, 15W and 3153lm, up to 205lm/W.
  • CN G3 fixed-white at 4000K: 550mA, 29V, 16W and 3173lm, up to 198lm/W. EH1.1 G3 at 4000K: 560mA, 30V, 17W and 3133lm, up to 185lm/W.
  • Series and parallel connection diagrams include tunable-white wiring; parallel-connected modules must share the same V-code group.
  • 120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
  • Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
  • Built-in LED modules require suitable luminaire protection; no standalone IP rating.
  • CJ G4, 3000K / 4000K ordering codes: 1010 147 88446; 1010 147 88546.
  • CN G3, tunable white ordering codes: 1010 137 81646.
  • CN G3, 3000K / 4000K ordering codes: 1010 147 87846; 1010 147 87946.
  • EH1.1 G3, tunable white / 2700K ordering codes: 1010 127 36046; 1010 127 12146.
  • EH1.1 G3, 3000K / 4000K ordering codes: 1010 117 46446; 1010 117 30946.
