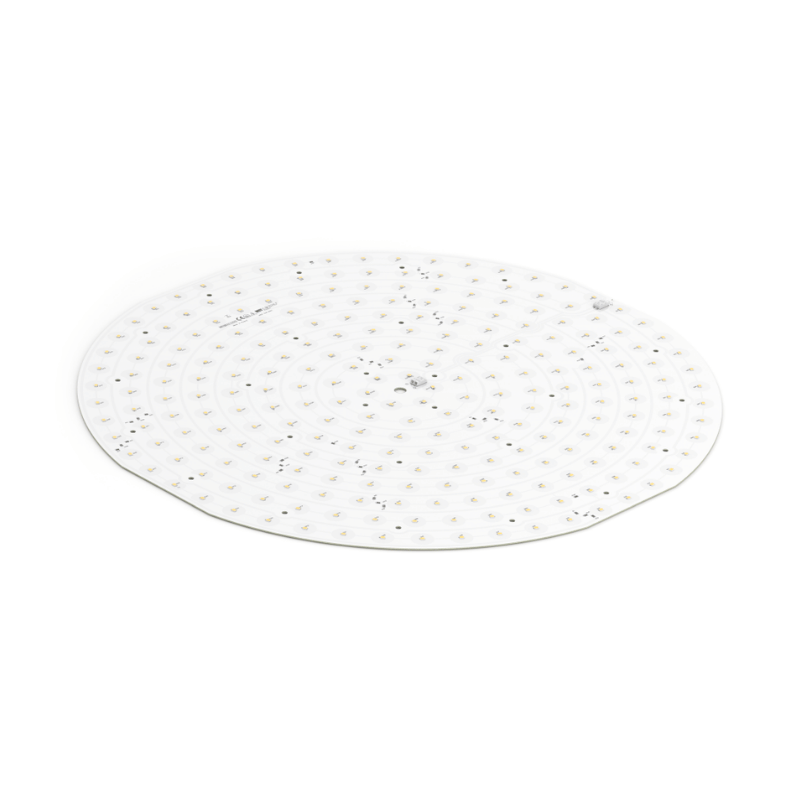

RDLED 530MM & 1/2 530MM LED MODULES

RdLED 530mm & 1/2 530mm
Up to 206lm/W - round and half-round 530mm modules
Description

RdLED 530mm & 1/2 530mm

  • MST built-in constant-current LED family covering full-round 530mm and half-round 1/2 530mm modules.
  • Full-round variants: nominal 4000lm, 42V or 126V designations, CRI 80 CJ G4 or LG G2 at 3000K and 4000K.
  • CJ G4 full-round at 4000K delivers 4098lm at 20W, up to 206lm/W. The 42V designation uses 540mA at 37V forward voltage; the 126V designation uses 180mA at 111V.
  • LG G2 full-round at 4000K delivers 4201lm at 21W, up to 196lm/W.
  • Half-round variants: nominal 3000lm/39V, CRI 80 CJ G4 or CN G3, tunable white 2700-6500K. CJ G4 delivers 2881lm warm white or 3178lm cool white at 460mA, 35V and 16W per channel; CN G3 delivers 2885lm or 3130lm at 470mA and 17W per channel.
  • The family description states CCT availability from 2700K to 6500K and CRI 80/90; the ordering codes in this PDF are CRI 80.
  • 120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
  • Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
  • No standalone IP rating; suitable protection must be provided by the luminaire.
  • Half-round CJ G4 tunable white ordering codes: 1010 147 28446.
  • Full-round CJ G4: 3000K 42V / 126V, then 4000K 42V / 126V ordering codes: 1010 147 82546; 1010 147 82746; 1010 147 82646; 1010 147 82846.
  • Half-round CN G3 tunable white ordering codes: 1010 147 28346.
  • Full-round LG G2: 3000K 42V / 126V, then 4000K 42V / 126V ordering codes: 1010 147 82146; 1010 147 82346; 1010 147 82246; 1010 147 82446.
