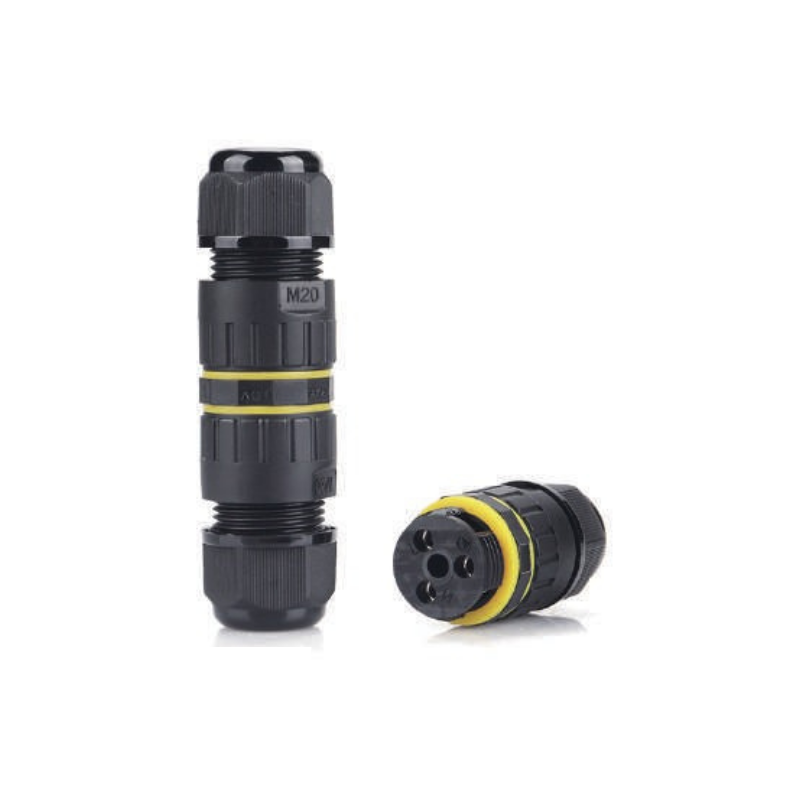

IP68 screw connector 2/3/4/5pins
Description

P‑20‑V‑XP

  • ● IP68 screw‑terminal waterproof connector.
  • ● Available in 2‑pin, 3‑pin, 4‑pin, 5‑pin and 6‑pin versions.
  • ● PA66 UL94 V‑0 flame‑retardant housing.
  • ● Silicone rubber waterproof seal.
  • ● Cable diameter options: 5–9mm and 9–12mm.
  • ● Rated 24A for 2–4 pins and 17.5A for 5–6 pins.
  • ● Wire section: 0.5–2.5mm² (2–4 pins) and 0.5–1.5mm² (5–6 pins).
  • ● Secure screw‑terminal wiring system.
  • ● Stripping length: 6–8mm.
  • ● Operating temperature: –40°C to +105°C.
  • ● 3‑year warranty.
