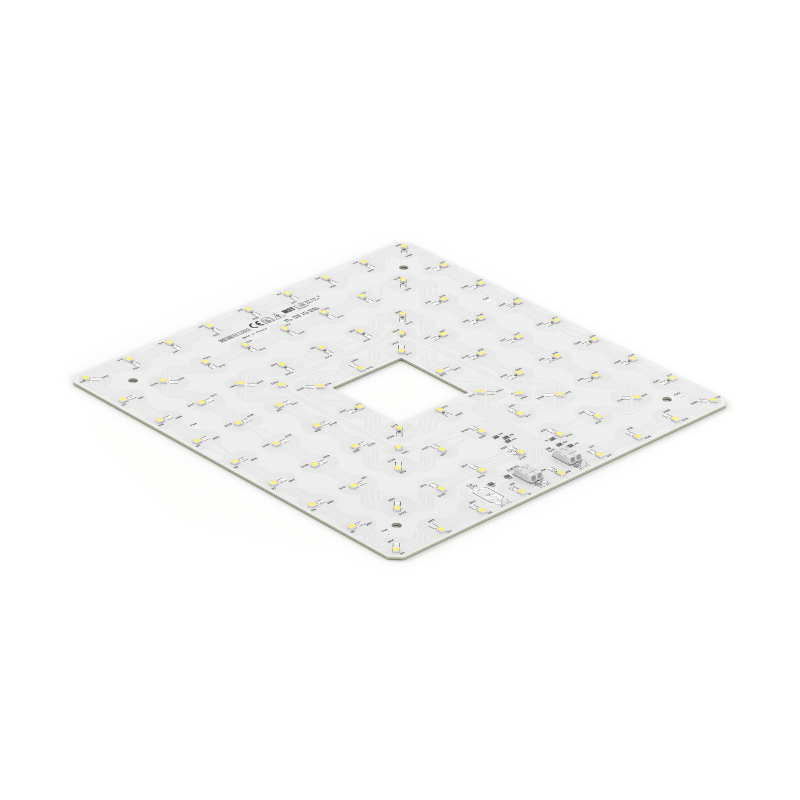

RECLED 225X225MM EMG SSW LED MODULES

Reference RecLED 225x225mm EMG SSW

Up to 204lm/W - square modules with emergency circuit

Description

Reference RecLED 225x225mm EMG SSW

MST built-in constant-current square LED modules, 225x225mm, nominal 1500lm/30V designation, with separate main and emergency-lighting circuits. EMG SSW is retained as the manufacturer's variant designation.
CRI 80 CJ G4 and CN G3 at 3000K or 4000K; other CCT and CRI on request.
CJ G4 4000K main circuit: 285mA, 26V forward voltage, 7.5W and 1539lm, up to 204lm/W. Emergency circuit: 285mA, 2.7V, 0.8W and 151lm. The 3000K main circuit delivers 1480lm.
CN G3 4000K main circuit: 300mA, 27V, 8W and 1572lm, up to 198lm/W. Emergency circuit: 300mA, 2.7V, 0.8W and 155lm. The 3000K main circuit delivers 1490lm.
The technical table lists a 60Vdc working-voltage rating. Main and emergency circuits require the appropriate separate supplies and connections.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
No standalone IP rating; suitable protection must be provided by the luminaire.
CJ G4, 3000K / 4000K ordering codes: 1010 137 83846; 1010 137 47046.
CN G3, 3000K / 4000K ordering codes: 1010 147 36646; 1010 147 36746.
