LINLED 1100LM PER 1FT 4C LED MODULES

Reference LinLED 1100lm per 1ft 4C

Up to 192lm/W - SELV 4C linear modules

Description

Reference LinLED 1100lm per 1ft 4C

MST built-in constant-current linear LED modules with four connectors (4C) for SELV parallel systems.

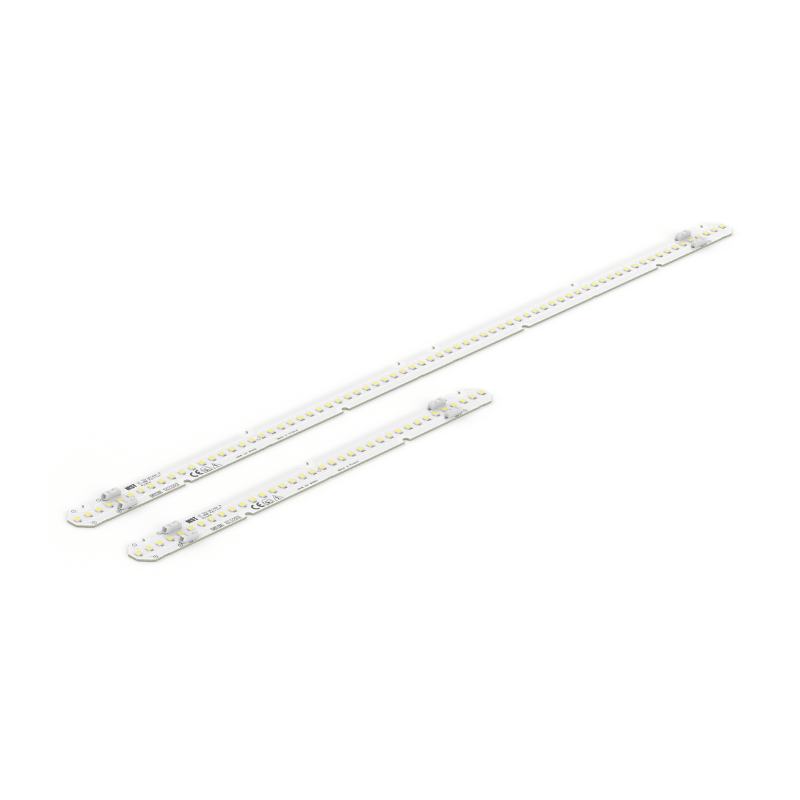

280x20mm nominal 1100lm/36V and 560x20mm nominal 2200lm/36V. CRI 80 CN G3 at 3000K or 4000K; CRI 90 EH1.1 G3 at 2700K, 3000K or 4000K.
CN G3 280mm at 4000K: 185mA, 32V forward voltage, 6W and 1151lm, up to 192lm/W. The 560mm version delivers 2303lm at 370mA and 12W.
EH1.1 G3 280mm at 4000K: 195mA, 34V, 6.6W and 1146lm, up to 173lm/W. The 560mm version delivers 2292lm at 390mA and 13W.
Parallel limits: 8 modules of 280mm or 4 of 560mm; mixed lengths must not exceed 2240mm. Use modules from the same V-code group for parallel wiring.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
No standalone IP rating; suitable protection must be provided by the luminaire.
CN G3 3000K: 280 / 560mm ordering codes: 1010 147 09846; 1010 147 09946.
CN G3 4000K: 280 / 560mm ordering codes: 1010 147 10046; 1010 147 10146.
EH1.1 G3 2700K: 280 / 560mm ordering codes: 1010 117 69946; 1010 117 70046.
EH1.1 G3 3000K: 280 / 560mm ordering codes: 1010 117 40146; 1010 117 40746.
EH1.1 G3 4000K: 280 / 560mm ordering codes: 1010 117 40246; 1010 117 40846.
