SC42W300-1050CG4-W-NX
  • SC42W300-1050CG4-W-NX
Attachments
Download
DATASHEET

SC42W300-1050CG4-W-NX.pdf

Download (652.86k)

SC42W300-1050CG4-W-NX

156430
Description

156430

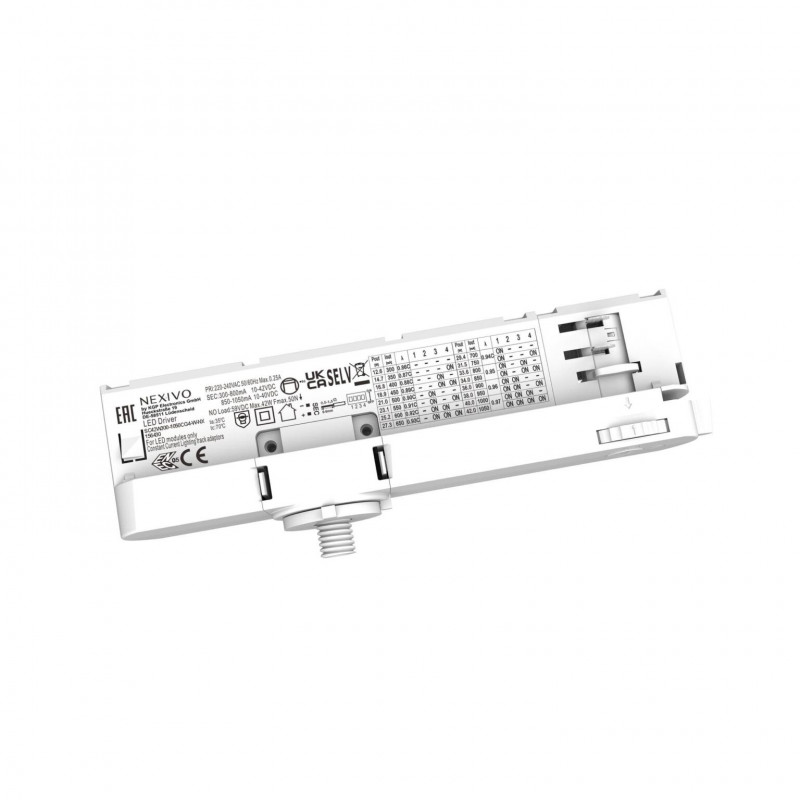

SC42W300-1050CG4-W-NX - 156430 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 300-1050 mA - Puissance de sortie 3-42 W - Tension de sortie 10-42 V - Tension d’entrée 220-240 VAC - PF ≥ 0,97 - THD ≤ 30% - Rendement ≥ 91,7% - Isolation - Class II - IP20 - Independent - Dimensions 158 x 31 x 45 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

LAS CODE 156430
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming 0-10V
Output Type Constant Current
Min Output Current mA 300
Min Input Voltage V 10
Max Output Voltage in V 42
Max Output Voltage in V 1050
Remote or Built In Independent
IP RATING IP20
How To Program the Current? DIP switches
Length 158
Width 31
Heigth 45
KGP EQUIVALENT MODEL SC42W300-1050CG4-W
