CC7W100-180CG-TRIAC-NX
  • CC7W100-180CG-TRIAC-NX
Attachments
Download
DATASHEET

CC7W100-180CG-TRIAC-NX.pdf

Download (743.12k)

CC7W100-180CG-TRIAC-NX

160510
Description

160510

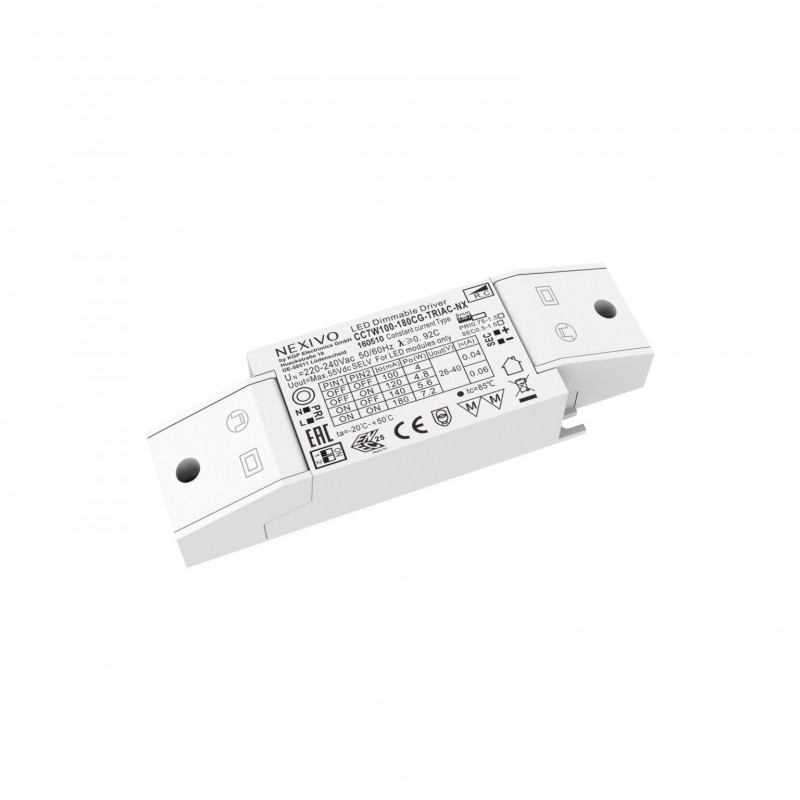

CC7W100-180CG-TRIAC-NX - 160510 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 100-180 mA - Puissance de sortie 3,64-5,6 W - Tension de sortie 26-40 V - Tension d’entrée 220-240 VAC - PF ≥ 0,92 - Rendement ≥ 77% - Isolation - Class II - IP20 - Independent / Built-in - Dimensions 129 x 44 x 23 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE 128431
LAS CODE 160510
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming TRIAC
Output Type Constant Current
Min Output Current mA 100
Min Input Voltage V 26
Max Output Voltage in V 40
Max Output Voltage in V 180
Remote or Built In Independent / Built-in
IP RATING IP20
How To Program the Current? DIP switches
Length 129
Width 44
Heigth 23
KGP EQUIVALENT MODEL CC7W100-180CG-TRIAC
