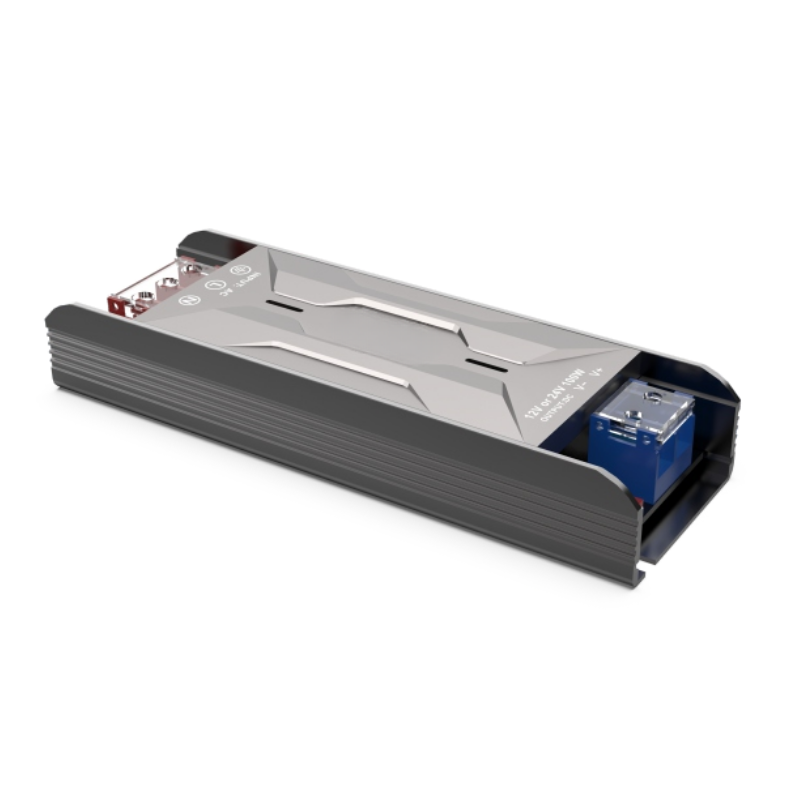

AUTO122448CV100W

LAS-100WHCZ-12&24
100W Multi Output Auto CV Drivers
Description

LAS-100WHCZ-12&24

  • LED Switching Power Supply (constant voltage) with intelligent recognition of LED strip working voltage.
  • Protections: short circuit / over load / over voltage / over temperature.
  • Soothing start, soft light and eye protection, with three gears dimming mode.
  • Design for indoor installations; cooling by free air convection.
  • 100% full load burn-in test; high reliability.
  • 175–264Vac input, 50Hz; PF > 0.55; no-load power consumption < 0.5W.
  • Ripple & noise: ≤150mV (12V), ≤200mV (24V), ≤300mV (48V); linear regulation ±1%; load regulation ±1%.
  • Start-up time (typ.) 600ms @ 230Vac; hold-up time (typ.) 12ms @ 230Vac; inrush current (typ.) cold start 60A @ 230Vac.
  • Working temperature: ta -30°C to 50°C; tc 80°C; humidity 20–99%RH non-condensing.
  • Safety/EMC: IEC/EN61347; IEC/EN60950; EN55015; EN61547; EN61000-3-2; EN61000-3-3; SELV; IP20; CE / RoHS / CB.
  • Dimensions: 145 × 48 × 24 mm; weight 210g ±10g.
  • Model: LAS-100WHCZ-12&24 — Output 12Vdc (±0.5V) max 8.5A or 24Vdc (±0.5V) max 4.2A; max 100W; efficiency (typ.) 87% (12V) / 88% (24V); ripple & noise ≤150mV (12V) / ≤200mV (24V).
  • Model: LAS-100WHCZ-24&48 — Output 24Vdc (±0.5V) max 4.2A or 48Vdc (±0.5V) max 2.08A; max 100W; efficiency (typ.) 89% (24V) / 90% (48V); ripple & noise ≤200mV (24V) / ≤300mV (48V).
  • Auto recovery protections: overload (≥110%–150% load) and short circuit (indicator flashes); overtemperature reduces output power then shuts down and auto-recovers after cooling.
