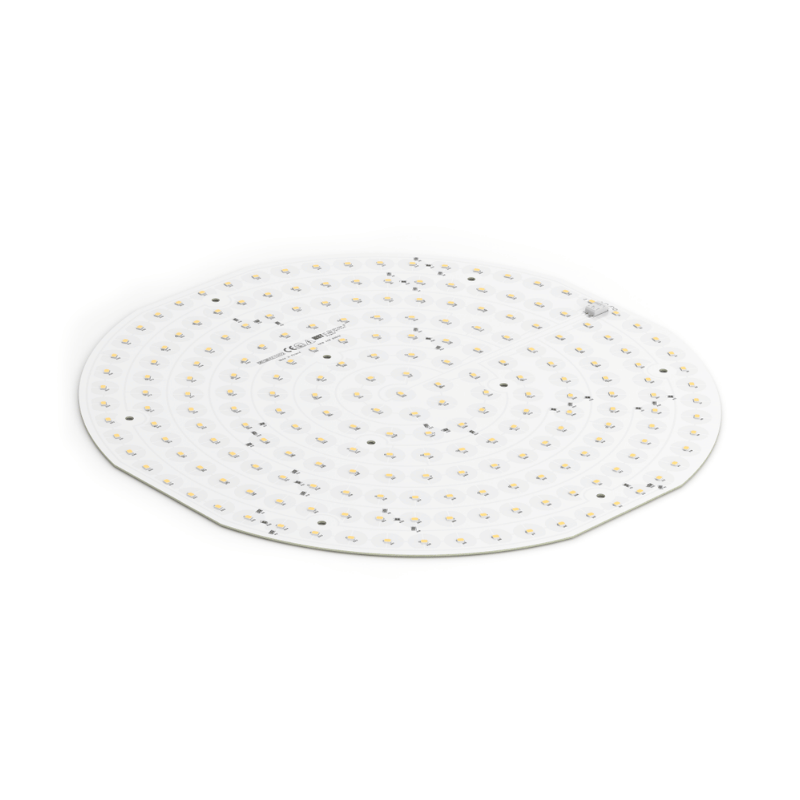

RDLED 350MM FLAT LED MODULES

RdLED 350mm FLAT
Up to 204lm/W - flat round 350mm modules
Description

RdLED 350mm FLAT

  • MST built-in constant-current round LED modules, 350mm FLAT, nominal 4000lm class, distinct from the non-FLAT 350mm family.
  • CRI 80 CJ G4, CN G3 and LG G2 at 3000K or 4000K, with 36V or 108V designations. CRI 90 EH1.1 G3 is listed at 2700K, 3000K and 4000K with a 36V designation.
  • CJ G4 at 4000K delivers 4083lm at 20W, up to 204lm/W. The 36V designation uses 630mA at 32V forward voltage; the 108V designation uses 210mA at 95V. At 3000K, flux is 3926lm.
  • CN G3 at 4000K delivers 4151lm at 21W, up to 198lm/W; LG G2 delivers 4152lm at 21W, up to 194lm/W. Both use 660mA for the 36V designation or 220mA for 108V.
  • EH1.1 G3 CRI 90 at 4000K: 680mA, 33V forward voltage, 23W and 4149lm, up to 184lm/W. The 2700K and 3000K versions deliver 3905lm.
  • Family CCT availability is stated as 2700-6500K, with CRI 80/90. Follow the variant-specific current limits and driver requirements.
  • 120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
  • Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
  • No standalone IP rating; suitable protection must be provided by the luminaire or enclosing system.
  • CJ G4: 3000K 36V / 108V, then 4000K 36V / 108V ordering codes: 1010 147 75146; 1010 147 75346; 1010 147 75246; 1010 147 75446.
  • CN G3: 3000K 36V / 108V, then 4000K 36V / 108V ordering codes: 1010 147 74746; 1010 147 74946; 1010 147 74846; 1010 147 75046.
  • LG G2: 3000K 36V / 108V, then 4000K 36V / 108V ordering codes: 1010 147 74346; 1010 147 74546; 1010 147 74446; 1010 147 74646.
  • EH1.1 G3 36V, 2700K ordering codes: 1010 147 91446.
  • EH1.1 G3 36V, 3000K / 4000K ordering codes: 1010 127 69746; 1010 127 11346.
