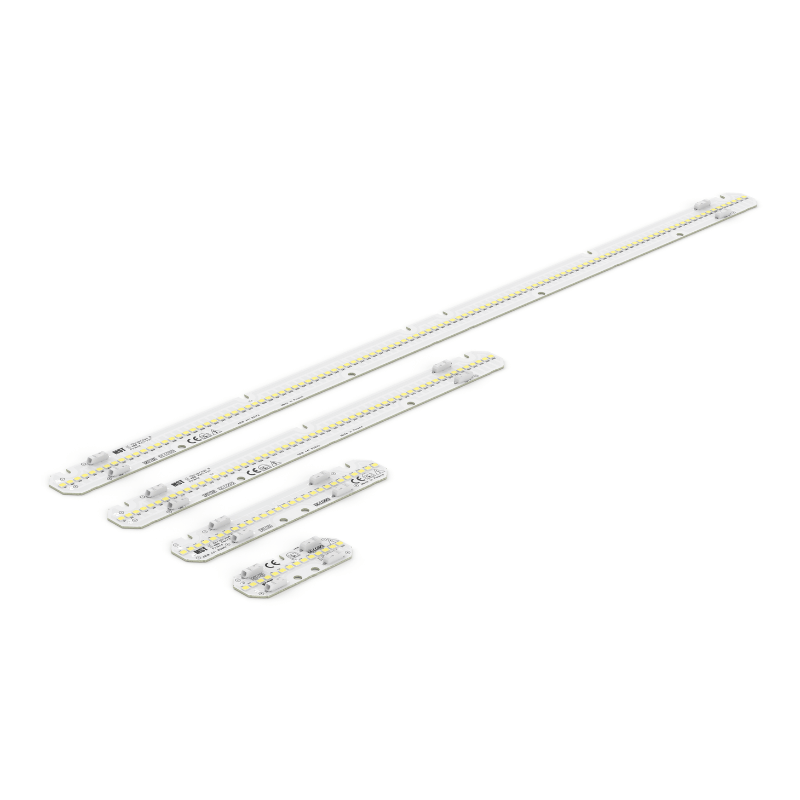

LINLED 2000LM PER 1FT 4C LED MODULES
LinLED 2000lm per 1ft 4C
Up to 190lm/W - high-output SELV linear modules
Description
LinLED 2000lm per 1ft 4C
- MST built-in constant-current linear LED modules with four connectors (4C) for SELV parallel systems.
- Lengths 70, 140, 280 and 560mm, all 24mm wide, with nominal 500lm, 1000lm, 2000lm and 4000lm designations respectively; all use a 42V product designation.
- CRI 80 CN G3 at 3000K or 4000K; other CCT and CRI on request.
- At 4000K, the 70/140/280/560mm versions deliver 506/1012/2024/4048lm at 70/140/280/560mA respectively, with 38V forward voltage and 2.7/5.3/10.6/21.3W nominal power. Declared efficacy is 190lm/W.
- At 3000K, corresponding flux values are 480/959/1918/3837lm at 180lm/W. Current ranges by ascending length: 10-150mA, 20-300mA, 40-600mA and 80-1200mA.
- Parallel limits: 32 modules of 70mm, 16 of 140mm, 8 of 280mm or 4 of 560mm; mixed lengths must not exceed 2240mm. Use the same V-code group in parallel.
- 120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
- Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
- No standalone IP rating; suitable protection must be provided by the luminaire or enclosing system.
- CN G3 CRI 80 3000K: 70 / 140 / 280 / 560mm ordering codes: 1010 147 51946; 1010 147 52046; 1010 147 52146; 1010 147 52246.
- CN G3 CRI 80 4000K: 70 / 140 / 280 / 560mm ordering codes: 1010 147 52346; 1010 147 52446; 1010 147 52546; 1010 147 52646.
-
