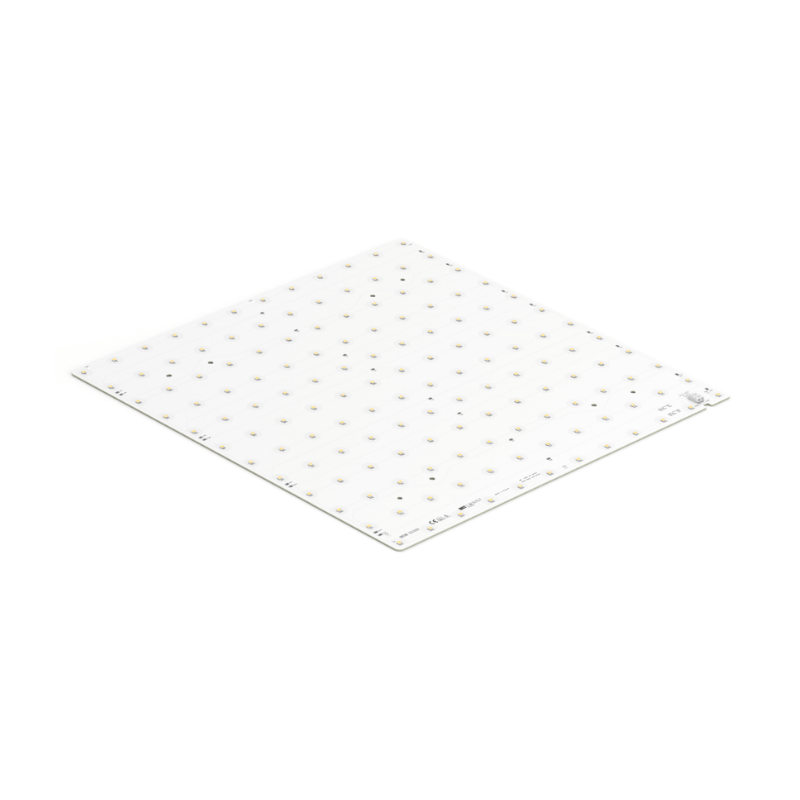

RECLED 400X400MM LED MODULES

RecLED 400x400mm
Up to 198lm/W - square 5000lm-class modules
Description

RecLED 400x400mm

  • MST built-in constant-current square LED modules, 400x400mm, nominal 5000lm class, with 36V and 108V product designations.
  • CRI 80 CJ G4 and CN G3 at 3000K or 4000K; other CCT and CRI on request.
  • CJ G4 at 4000K delivers 5173lm at 26W, up to 198lm/W. The 108V designation operates at 270mA and 97V forward voltage; the 36V designation at 810mA and 32V. At 3000K, flux is 4974lm.
  • CN G3 at 4000K delivers 5204lm at 27W, up to 190lm/W. The 108V designation operates at 280mA and 98V; the 36V designation at 840mA and 33V. At 3000K, flux is 4933lm.
  • Current ranges: 40-800mA for the 108V designation and 120-2400mA for 36V, for both LED families.
  • 120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
  • Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
  • No standalone IP rating; suitable protection must be provided by the luminaire.
  • CJ G4: 3000K 108V / 36V, then 4000K 108V / 36V ordering codes: 1010 147 59946; 1010 147 60146; 1010 147 60046; 1010 147 60246.
  • CN G3: 3000K 108V / 36V, then 4000K 108V / 36V ordering codes: 1010 147 32446; 1010 147 32646; 1010 147 32546; 1010 147 32746.
