RDLED 1/4 800MM & 1/8 RING 820-1080MM LED MODULES

RdLED 1/4 800mm & 1/8 RING 820-1080mm
Up to 205lm/W - quarter-round and 1/8 ring modules
Description

RdLED 1/4 800mm & 1/8 RING 820-1080mm

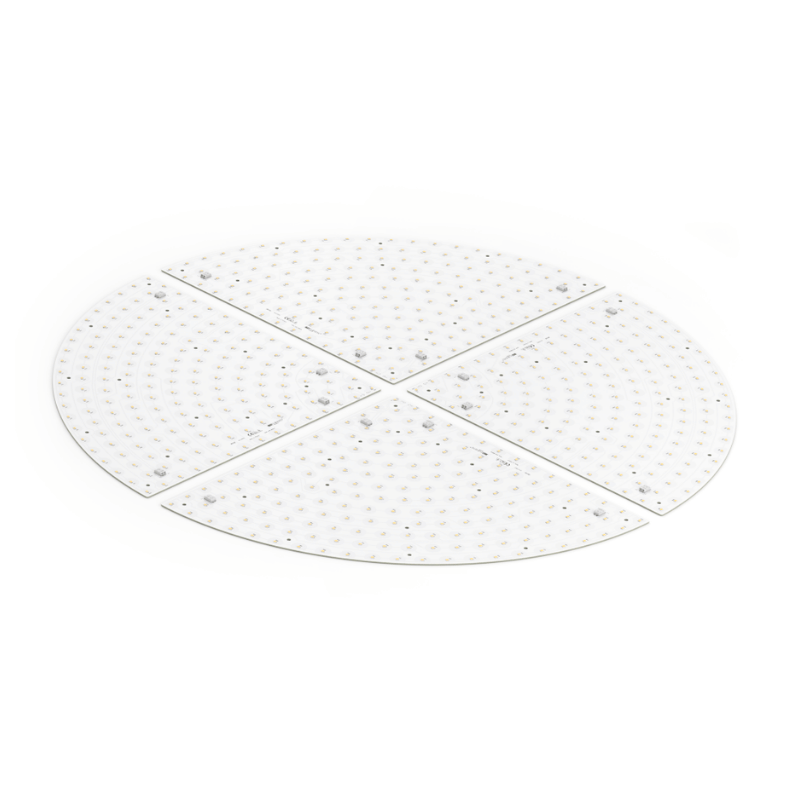

  • MST built-in constant-current LED modules covering 1/4 800mm nominal 3000lm/33V and 1/8 RING 820-1080mm nominal 1100lm/24V formats.
  • CRI 80 CJ G4 and CN G3 fixed-white versions at 3000K and 4000K; CRI 90 EH1.1 G3 at 2700K, 3000K and 4000K. CN G3 and EH1.1 G3 also have 2700-6500K tunable-white variants in both geometries.
  • CJ G4 quarter-round at 4000K: 530mA, 29V forward voltage, 15W and 3153lm. CJ G4 1/8 ring at 4000K: 265mA, 21V, 5.6W and 1147lm. Efficacy up to 205lm/W.
  • CN G3 1/8 ring fixed-white at 4000K delivers 1154lm at 275mA and 5.8W; EH1.1 G3 delivers 1139lm at 280mA, 22V and 6.2W.
  • Series and parallel connection diagrams include dedicated tunable-white channels. Use identical V-code groups for parallel wiring. Some quarter-round references also appear in the standalone 800mm and 1/12-ring datasheets.
  • 120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
  • Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
  • No standalone IP rating; suitable protection must be provided by the luminaire.
  • CJ G4 quarter-round, 3000K / 4000K ordering codes: 1010 147 88446; 1010 147 88546.
  • CJ G4 1/8 ring, 3000K / 4000K ordering codes: 1010 147 88646; 1010 147 88746.
  • CN G3 tunable white: quarter-round / 1/8 ring ordering codes: 1010 137 81646; 1010 137 81846.
  • CN G3 quarter-round, 3000K / 4000K ordering codes: 1010 147 87846; 1010 147 87946.
  • CN G3 1/8 ring, 3000K / 4000K ordering codes: 1010 147 88046; 1010 147 88146.
  • EH1.1 G3 quarter-round tunable white ordering codes: 1010 127 36046.
  • EH1.1 G3 1/8 ring tunable white ordering codes: 1010 147 91546.
  • EH1.1 G3 quarter-round 2700K ordering codes: 1010 127 12146.
  • EH1.1 G3 quarter-round 3000K / 4000K ordering codes: 1010 117 46446; 1010 117 30946.
  • EH1.1 G3 1/8 ring 2700K ordering codes: 1010 137 58546.
  • EH1.1 G3 1/8 ring 3000K / 4000K ordering codes: 1010 127 07146; 1010 127 07246.
