TP-36 LINDA-40

TP36
Surface Mounted Or Suspended
Description

TP36

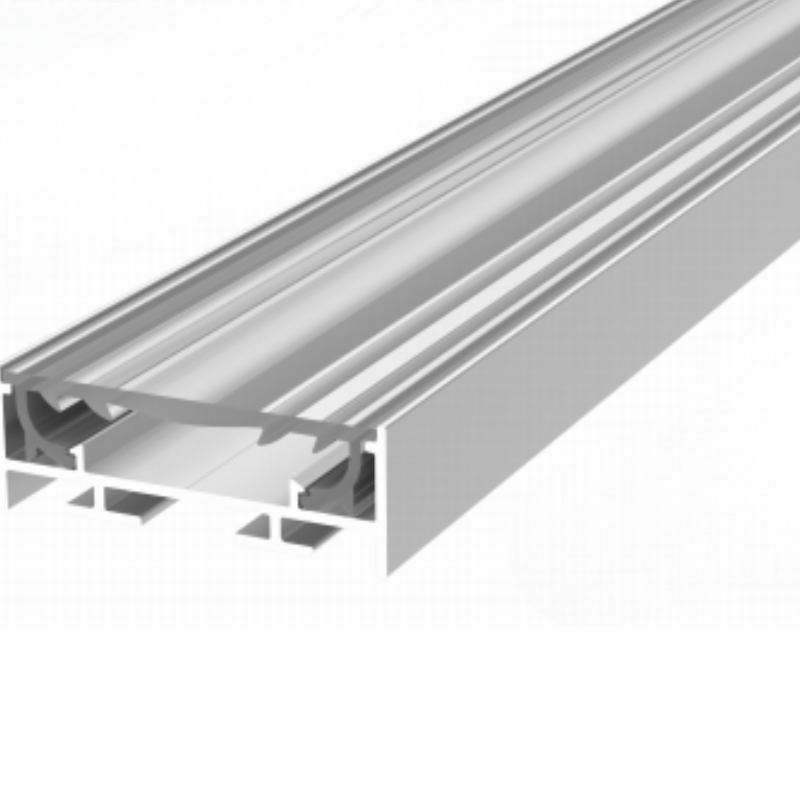

  • LIGHT & SMART TP-36 extruded aluminium profile for downward-only linear lighting, suitable for suspended or surface-mounted installation.
  • Designed for the LEDiL LINDA-40 optics range and compatible with rigid LED PCBs or LED tape.
  • Requires a remotely installed LED driver.
  • Standard profile reference TP36-01-AL2300, supplied in 2300mm sections; other lengths available on request.
  • Aluminium colour as standard, with other colours available on request.
  • Profile cross-section measures 42.2mm wide and 15.0mm high.
  • Accessories are ordered to suit each configuration: TP36-04 pair of end caps and TP36-06 surface-mounting/suspension clip.
  • LINDA-40-WW, LINDA-40-W, LINDA-40-O, LINDA-40-ZT25 and LINDA-40-2ZT25
  • Designed for straightforward assembly using the appropriate profile, optics and mounting accessories.
