• Neuf
SC60W1100-1400CG6-W-DALI-NX
  • SC60W1100-1400CG6-W-DALI-NX
Documents joints
Téléchargement
DATASHEET

SC60W1100-1400CG6-W-DALI-NX.pdf

Téléchargement (1.02M)

SC60W1100-1400CG6-W-DALI-NX

156640
Description

156640

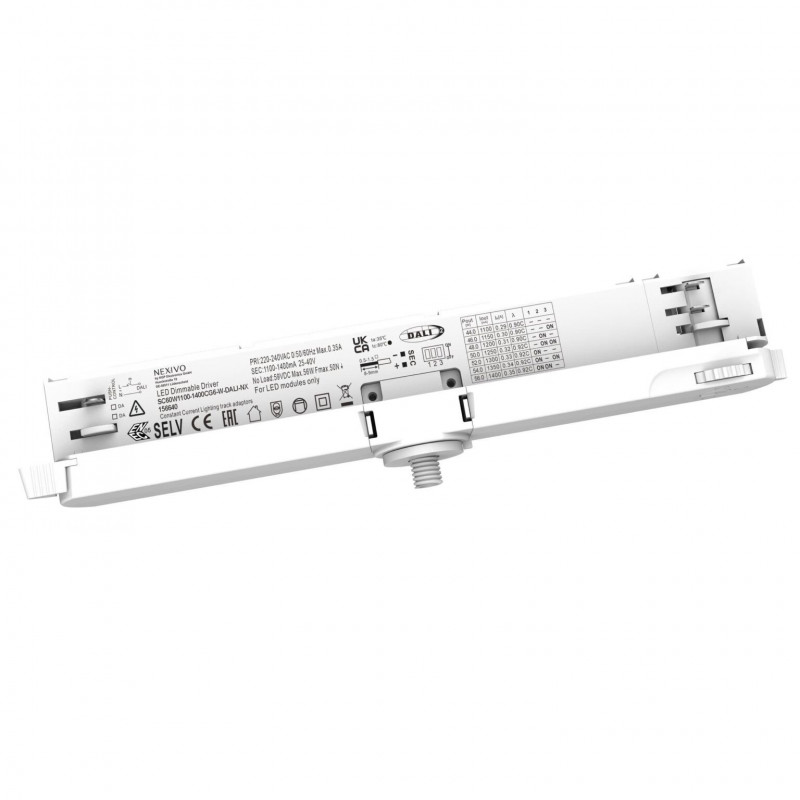

SC60W1100-1400CG6-W-DALI-NX - 156640 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 1100-1400 mA - Puissance de sortie 27,5-58,8 W - Tension de sortie 25-40 V - Tension d’entrée 220-240 VAC - PF ≥ 0,92 - THD ≤ 15% - Rendement ≥ 89% - Isolation - Class II - IP20 - Independent - Dimensions 238 x 31 x 43,7 mm - Durée de vie 50000 h - Garantie 5 ans

Références spécifiques a

LAS CODE 156640
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming DALI
Output Type Constant Current
Min Output Current mA 1100
Min Input Voltage V 25
Max Output Voltage in V 1400
Max Output Voltage in V 40
Remote or Built In Independent
IP RATING IP20
How To Program the Current? DIP switches
Length 238
Width 31
Heigth 43.7
KGP EQUIVALENT MODEL SC60W1100-1400CG6-W-DALI
