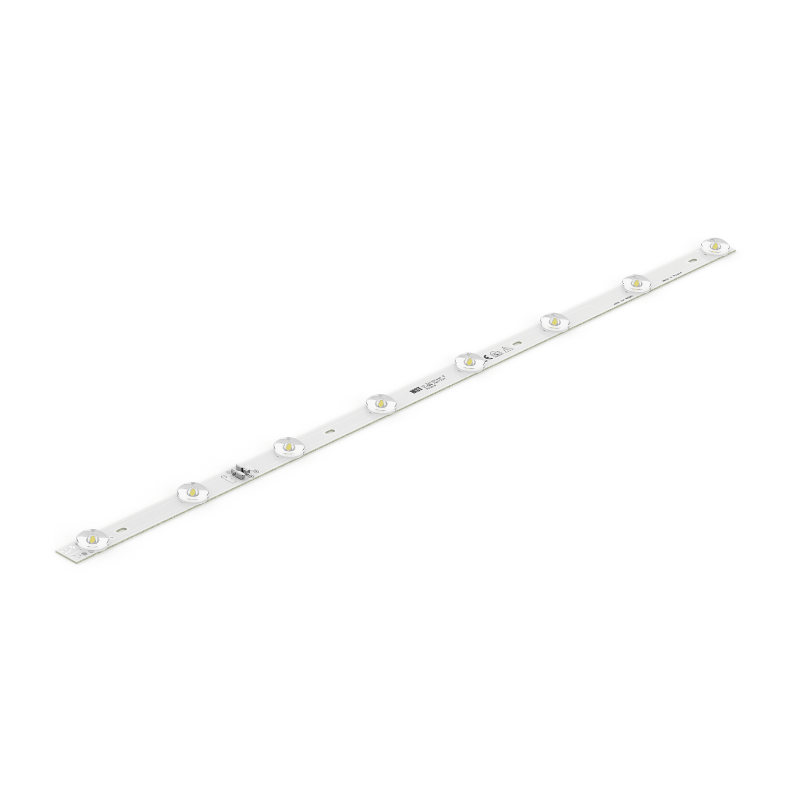

LINLED 497X14MM LENS LED MODULES

Reference LinLED 497x14mm LENS

160° batwing lenses - up to 174lm/W

Description

Reference LinLED 497x14mm LENS

MST built-in constant-current linear LED modules, 497x14mm, with integrated batwing lenses for backlighting applications.
12 LENS version is intended for best uniformity; 8 LENS is intended for less demanding solutions. Both use CRI 80 CJ G4, 3000K or 4000K, nominal 800lm/6V designation, in SELV systems.
8xLENS at 4000K: 850mA, 5.8V forward voltage, 4.9W and 795lm, up to 162lm/W. The 3000K version delivers 764lm at 156lm/W. Current range 40-1200mA.
12xLENS at 4000K: 820mA, 5.6V, 4.6W and 793lm, up to 174lm/W. The 3000K version delivers 762lm at 167lm/W. Current range 60-1800mA.
Maximum 9 modules in series within the specified SELV configuration.
160° beam angle, 3 SDCM and RG1 unlimited. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, RoHS and REACH compliant; ENEC is not declared.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires. Strip length depends on wire diameter: 6.5-7.5mm for diameter below 1.55mm; 7.5-9.5mm for diameter above 1.55mm, as specified in the datasheet.
No standalone IP rating; suitable protection must be provided by the luminaire.
8xLENS CJ G4, 3000K / 4000K ordering codes: 1010 137 31946; 1010 137 32046.
12xLENS CJ G4, 3000K / 4000K ordering codes: 1010 137 32146; 1010 137 32246.
