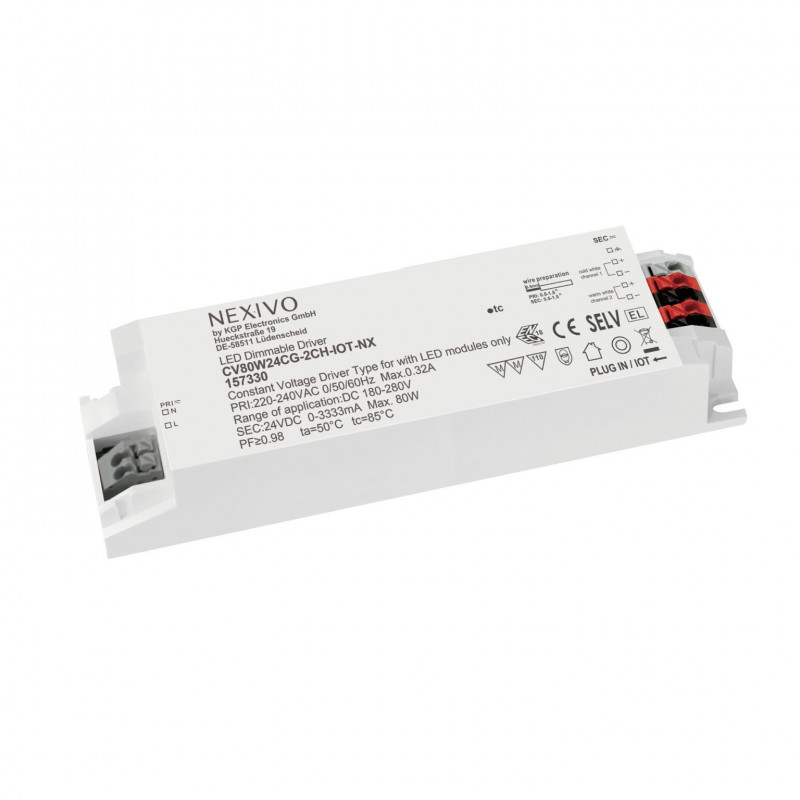

CV80W24CG-2CH-IOT-NX

CV80W24CG-2CH-IOT-NX

Share

CV80W24CG-2CH-IOT-NX - 157330 - NEXIVO by KGP GMBH - Driver LED dimmable - Tension constante - Courant de sortie 0-3333 mA - Puissance 0-80 W - Tension de sortie 24-24 V - Tension d’entrée 220-240 VAC - PF ≥ 0,98 - THD ≤ 15% - Rendement 88-88% - Isolation - Class II - IP20 - Built-in & Independent - Dimensions 168 x 43 x 22,8 mm - Durée de vie 50000 h - Garantie 5 ans

  • Reference
    157330
  • Condition
    New

  • LAS CODE
    157330
  • MANUFACTURER
    NEXIVO by KGP Electronics GmbH
  • Dimming
    CASAMBI
  • Output Type
    Constant Voltage
  • Min Output Current mA
    0
  • Min Input Voltage V
    24
  • Max Output Voltage in V
    24
    3333
  • Remote or Built In
    Built-in & Independent
  • IP RATING
    IP20
  • How To Program the Current?
    N/A
  • Length
    168
  • Width
    43
  • Heigth
    22.8
  • KGP EQUIVALENT MODEL
    CV80W24CG-2CH-IOT

DATASHEET

CV80W24CG-2CH-IOT-NX.pdf

Download (886.34KB)
