MODS COLOR PIXELS

Reference modscolorpixels

RGB/RGBW LED pixel modules available in multiple sizes with DMX512 control and IP67 protection.

Description

Reference modscolorpixels

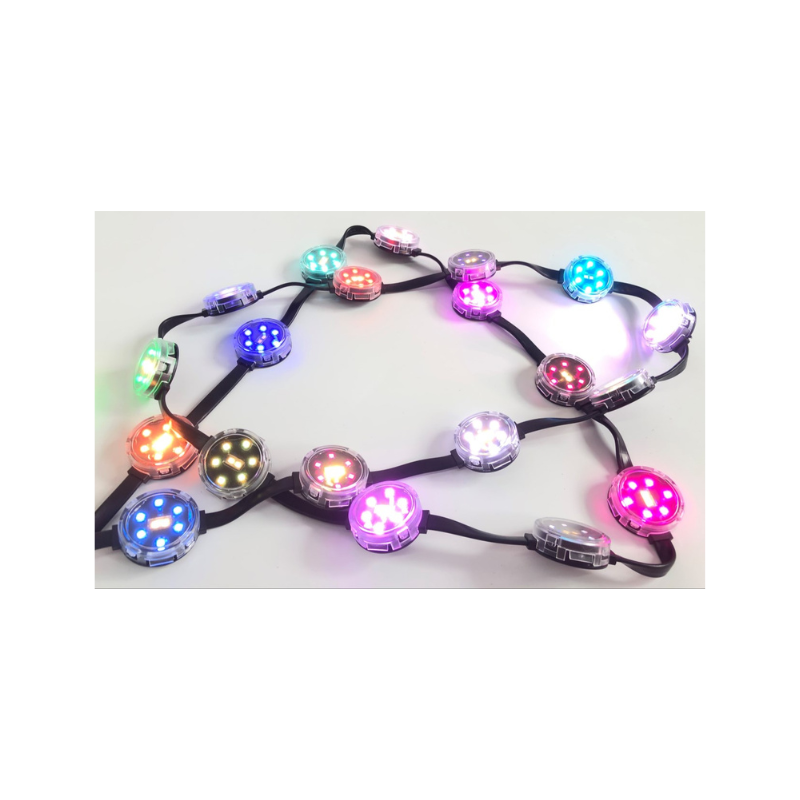

MODS COLOR PIXELS are IP67 RGB or RGBW architectural pixel modules with DMX512 control for dynamic color lighting installations.
Available in multiple dot diameters: PD33, PD42, PD65, PD90 and PD118.
Control signal: DMX512 using DMX+ (A) and DMX- (B).
Pixel configuration: 1 pixel per dot.
RGB versions use 3 DMX addresses per dot; RGBW versions use 4 DMX addresses per dot.
Finishing options: black or grey.
IP67 rated for outdoor and demanding architectural applications.
Mounting accessories available depending on model: PC bracket, aluminum channel or install bracket.

PD33 — 33mm, RGB or RGBW, DC12V, 100mm pitch, max 100 dots RGB or 80 dots RGBW per single feed; RGB 0.8W/dot 21lm, RGBW 1.0W/dot 30lm.
PD42 — 42mm, RGB or RGBW, DC24V, 100mm pitch, max 100 dots RGB or 80 dots RGBW per single feed; RGB 1.5W/dot 42lm, RGBW 1.7W/dot 56lm.
PD65 — 65mm, RGB or RGBW, DC24V, 150mm pitch, max 55 dots RGB or 48 dots RGBW per single feed; RGB 2.6W/dot 83lm, RGBW 3.0W/dot 95lm.
PD90 — 90mm, RGB or RGBW, DC24V, 150mm pitch, max 55 dots RGB or 28 dots RGBW per single feed; RGB 2.7W/dot 96lm, RGBW 4.7W/dot 152lm.
PD118 — 118mm, RGB or RGBW, DC24V, 300mm pitch, max 28 dots RGB or 18 dots RGBW per single feed; RGB 5.0W/dot 170lm, RGBW 9.0W/dot 390lm.
