RECLED 250X250MM LED MODULES

Up to 204lm/W - square 1250lm-class modules

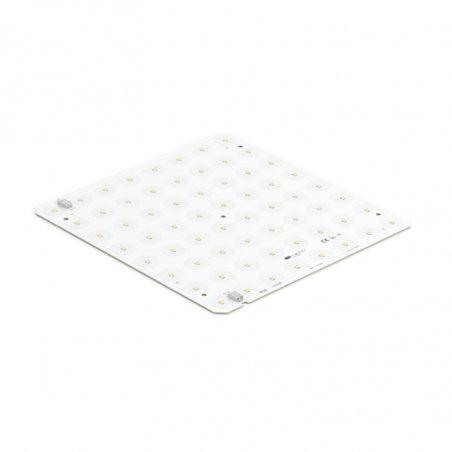

MST built-in constant-current square LED modules, 250x250mm, nominal 1250lm/24V designation.
CRI 80 CJ G4 and CN G3 at 3000K or 4000K; CRI 90 EH1.1 G3 at 2700K, 3000K or 4000K. Other CCT and CRI on request.

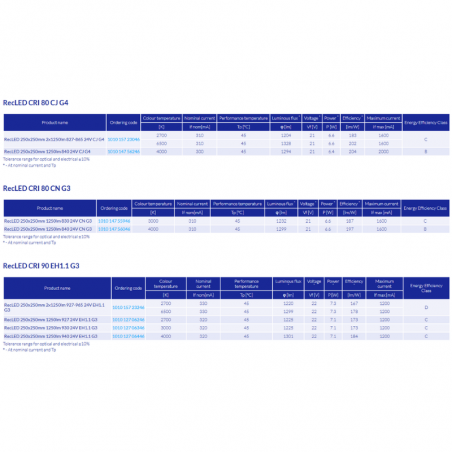

CJ G4 at 4000K: 300mA, 21V forward voltage, 6.4W and 1294lm, up to 204lm/W. At 3000K: 1245lm and 196lm/W. Current range 80-2000mA.
CN G3 at 4000K: 310mA, 21V, 6.6W and 1299lm, up to 197lm/W. Current range 80-1600mA.
EH1.1 G3 at 4000K: 320mA, 22V, 7.1W and 1301lm, up to 184lm/W; 2700K and 3000K versions deliver 1225lm. Current range 80-1200mA.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
No standalone IP rating; suitable protection must be provided by the luminaire.
CJ G4, 3000K / 4000K ordering codes: 1010 147 56146; 1010 147 56246.
CN G3, 3000K / 4000K ordering codes: 1010 147 55946; 1010 147 56046.
EH1.1 G3, 2700K / 3000K / 4000K ordering codes: 1010 127 06246; 1010 127 06346; 1010 127 06446.
