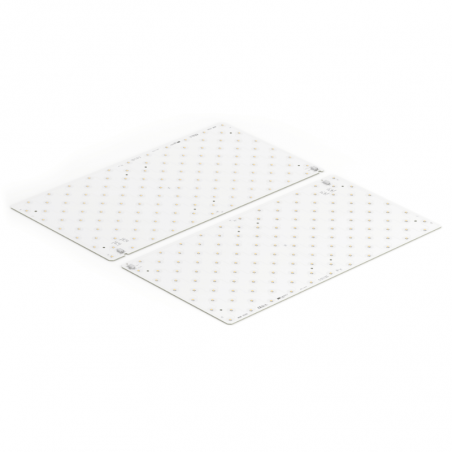

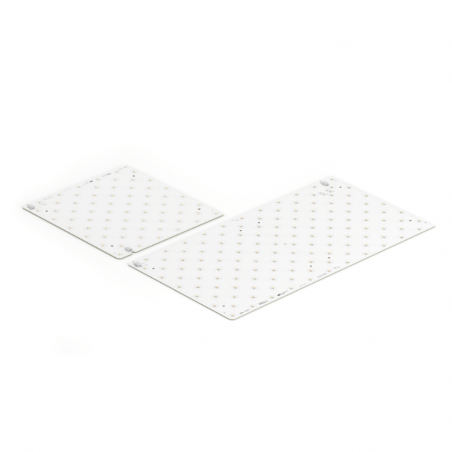

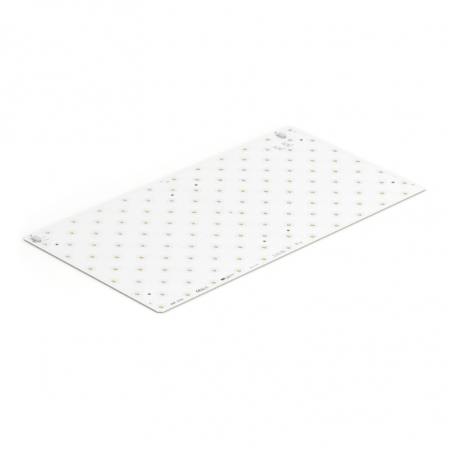

RECLED 540X270MM & 270X270MM LED MODULES

Up to 204lm/W - rectangular and square modules

MST built-in constant-current rectangular and square LED modules: 270x270mm nominal 1250lm/33V and 540x270mm nominal 2500lm/33V or 2500lm/66V.
CRI 80 CJ G4 and CN G3 families at 3000K and 4000K; other CCT and CRI on request.
CJ G4 270x270mm at 4000K: 215mA, 29V forward voltage, 6.3W and 1277lm, up to 204lm/W.
CJ G4 540x270mm at 4000K delivers 2554lm at 13W: 430mA/29V for the 33V designation or 215mA/58V for 66V. CN G3 540mm reaches 2594lm and 198lm/W at 4000K.
Connection limits: 270x270mm 33V, 8 series / 4 parallel; 540x270mm 66V, 4 series / 2 parallel; 540x270mm 33V, 8 series / 2 parallel. Use the same V-code group in parallel.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
Built-in LED modules require suitable luminaire protection; no standalone IP rating.
CJ G4 270mm 33V, 3000K / 4000K ordering codes: 1010 147 58346; 1010 147 58446.
CJ G4 540mm 33V, 3000K / 4000K ordering codes: 1010 147 56946; 1010 147 57046.
CJ G4 540mm 66V, 3000K / 4000K ordering codes: 1010 147 57146; 1010 147 57246.
CN G3 270mm 33V, 3000K / 4000K ordering codes: 1010 147 58146; 1010 147 58246.

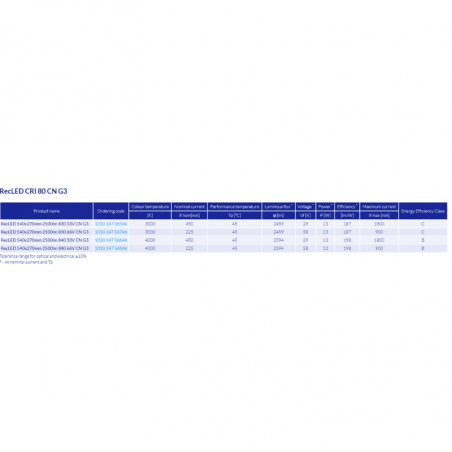

CN G3 540mm 33V, 3000K / 4000K ordering codes: 1010 147 56546; 1010 147 56646.
CN G3 540mm 66V, 3000K / 4000K ordering codes: 1010 147 56746; 1010 147 56846.
