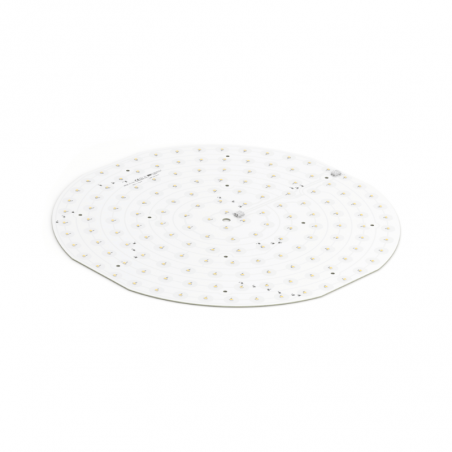

RDLED 440MM LED MODULES

Up to 199lm/W - round 440mm modules

MST built-in constant-current linear LED modules for premium indoor lighting, optimized for LEDiL DAISY optics and compatible with BRIANNA optics.
The supplied datasheet title mentions DAISY-7X1 and DAISY-28X1; its listed products are 280x28mm DAISY-7X1, nominal 1100lm/42V fixed white or 2x550lm/42V tunable white. This 28mm-wide family is distinct from the 24mm-wide 2C family.
2C two-connector non-SELV series system; tunable-white variants are designated 2x2C. Maximum 6 modules in series, with separate warm-white/cool-white channels for tunable white.
CJ G4 CRI 80 fixed white at 4000K: 150mA, 38V forward voltage, 5.7W and 1114lm, up to 196lm/W. The 3000K version delivers 1072lm. CJ G4 tunable-white channels deliver 534lm at 2700K or 589lm at 6500K, each at 80mA and 3W.
CRI 90 tunable-white version delivers 560lm at 2700K or 596lm at 6500K, each at 80mA, 38V and 3W, up to 197lm/W. It is labelled S8 K G7 in the performance table but S7 K G7 in the ordering table; confirm the designation with MST.
EH1.1 G3 CRI 90 fixed white: 185mA, 41V and 7.7W, delivering 1119lm at 3000K or 1191lm at 4000K, up to 156lm/W.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
No standalone IP rating; suitable protection must be provided by the luminaire or enclosing system.
CJ G4 CRI 80 tunable white ordering codes: 1010 137 33046.
CJ G4 CRI 80 fixed white, 3000K / 4000K ordering codes: 1010 137 33146; 1010 137 33246.
CRI 90 tunable white; S8/S7 K G7 designation to confirm ordering codes: 1010 147 86046.
EH1.1 G3 CRI 90 fixed white, 3000K ordering codes: 1010 127 02846.
EH1.1 G3 CRI 90 fixed white, 4000K ordering codes: 1010 117 83646.
