In Track DALI RGBW

30W 4 Channels

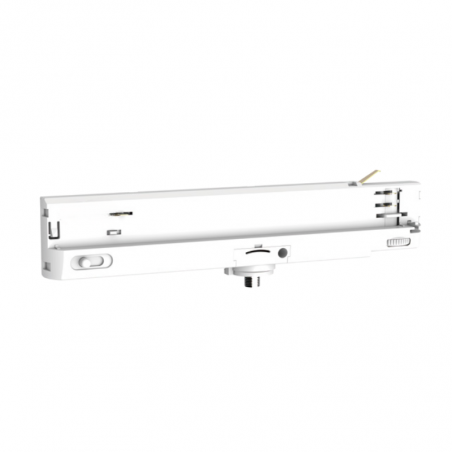

30W DALI/RGBW dimmable in-track constant current LED driver with built-in 3-phase 6-wire track adaptor.
Designed for RGBW luminaires with 4-channel output and maximum output current 700mA: R 140mA, G 140mA, B 140mA, W 280mA.
Output voltage 20–40Vdc, maximum <47Vdc; maximum output power 30W.
Nominal input voltage 220–240Vac, 50/60Hz; nominal line current 0.16A max.
Power factor corrected: PF > 0.9 at full load @ 230V; no-load power loss <0.5W.
Flicker-free dimming with normal dimming range from 0.1% to 100% at full load condition.

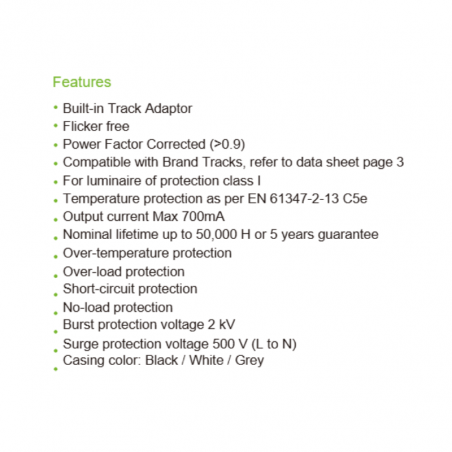

For protection class I luminaires; compatible with brand tracks according to datasheet guidance.
Protections: over-temperature, overload, short-circuit and no-load protection; automatic reversible protection functions.
Temperature protection according to EN 61347-2-13 C5e; ambient temperature ta -20°C to +35°C; max case temperature tc 85°C.
Surge protection: 500V L-N; burst protection voltage 2kV; galvanic isolation 3.75kVrms, SELV-equivalent primary/secondary isolation.
Safety standards: IEC 61347-1:2015, IEC 61347-1:2015/AMD1:2017, IEC 61347-2-13:2014 and IEC 61347-2-13:2014/AMD1:2016.
EMC: EN IEC 55015:2019/A11:2020, EN 61547:2009, EN IEC 61000-3-2:2019/A1:2021 and EN 61000-3-3:2013/A2:2021.
Casing colors available: black, white or grey; nominal lifetime up to 50,000 hours or 5-year guarantee.

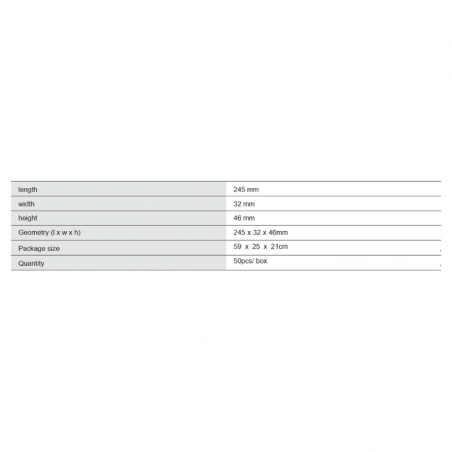

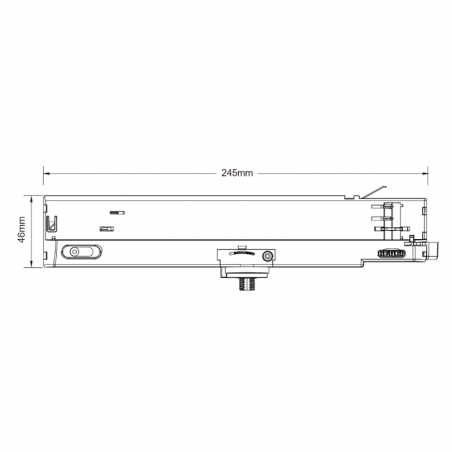

Dimensions: 245 × 32 × 46 mm; package size 59 × 25 × 21 cm; 50 pcs/box.

Model: ITDALI30WRGBW — 30W DALI/RGBW 4-channel in-track constant current LED driver.
Wiring: input and output cable cross-section 0.5–2.5mm² solid or flexible; wire preparation length 7–8 mm.
Installation notes: keep all connections as short as possible for good EMI behaviour; max output wire length 20 cm; secondary switching is not permitted.
Maximum allowed complete luminaire weight: 5 kg (50 N) for horizontal track system mounting.
