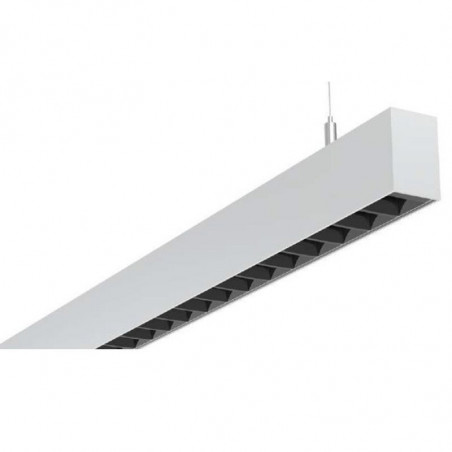

Surface or Suspended Profile
Partager

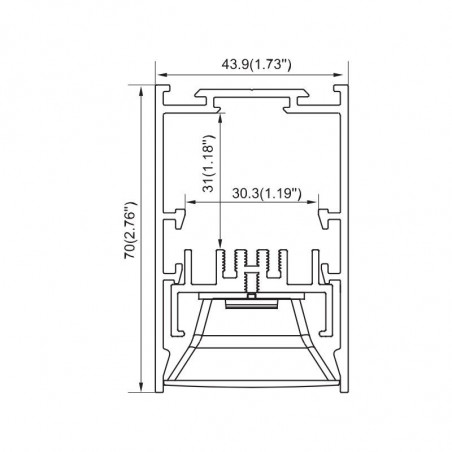

  • Extruded Aluminium profile
  • Down Only, to be suspended or surface mounted.

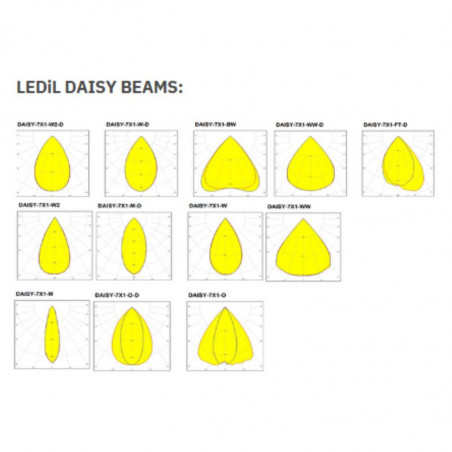

  • Designed for LEDiL DAISY / PC diffuser and Prismatic Diffuser also available.
  • Can be used with rigid PCB or LED tape.
  • Driver can be built in.
  • Separate gear tray that clips in the main profile.
  • Supplied in 2500mm sections / other lengths on demand
  • Colors: Black or White, other colors on demand.
  • Easy assembly with a complete set of accessories, to order to suit each configuration
  • Cover available for parts with no light.
  • Possibility to connect multiple sections together, straight or in angles.

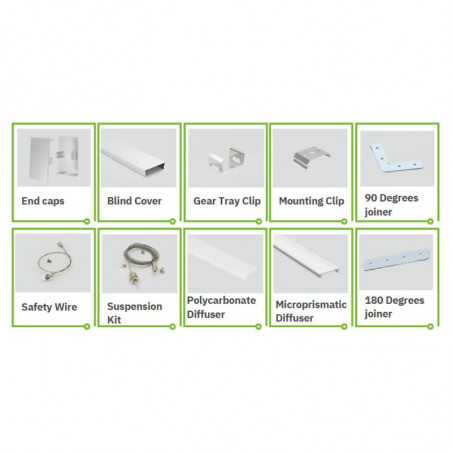

Accesories
  • TP01-01 TP-01 Main Profile
  • TP01-02 Gear Tray
  • TP01-03 Linear Aluminium Cover
  • TP01-04 Pair of End Caps
  • TP01-05 Gear Tray Clip
  • TP01-06 Surface Mounted / Suspension Clip
  • TP01-07 Safety Wire
  • TP01-08 180 Joiner
  • TP01-09 Suspension Kit
  • Tp01-10 90 Degrees Joiner
  • TP01-20 Polycarbonate Opal Diffuser
  • TP01-21 Prismatic Diffuser

  • Référence
    TP-01

Fiche Technique TP-01

TP01 DATASHEET

Téléchargement (1.67MB)
