TP-17 BRIANNA OR DAISY
TP-17 BRIANNA OR DAISY
TP-17 BRIANNA OR DAISY
TP-17 BRIANNA + DAISY

TP-17 BRIANNA OR DAISY

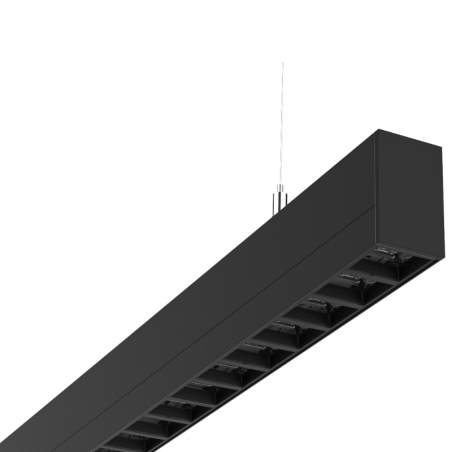

Surface Or Suspended Profile

Partager

  • Extruded Aluminium profile
  • Down Only, to be suspended or surface mounted.

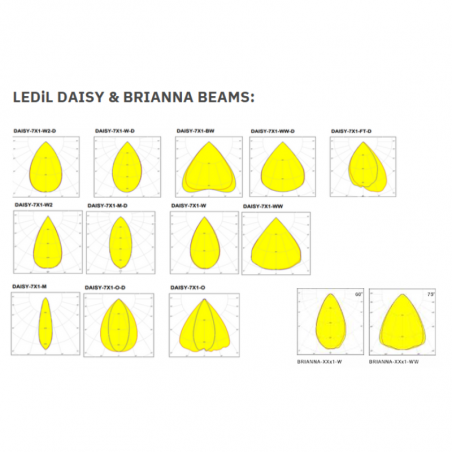

  • Designed for LEDiL DAISY and LEDiL BRIANNA + SHADE
  • Can be used with rigid PCB.
  • Driver can be built in.
  • Separate gear tray that clips on the main profile.
  • Supplied in 2500mm sections / other lengths on demand
  • Colors: Black or White, other colors on demand.
  • Easy assembly with a complete set of accessories, to order to suit each configuration
  • Possibility to connect multiple sections together.

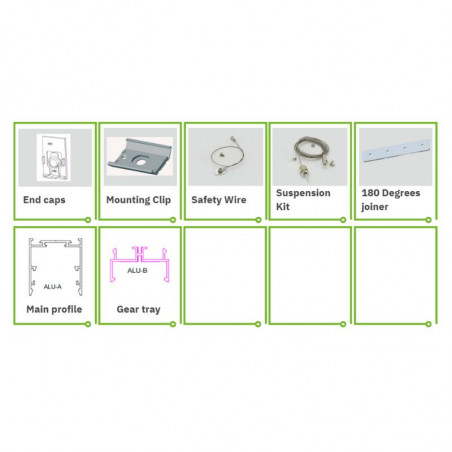

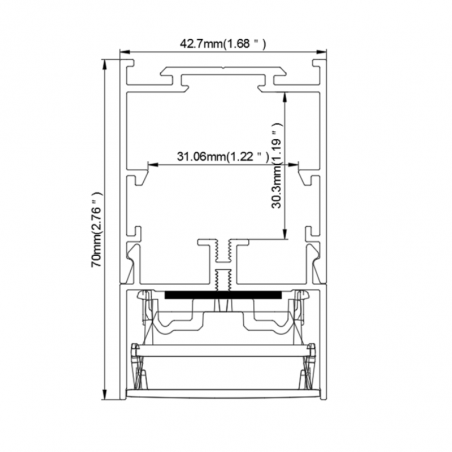

  • TP16-01 TP-01 Main Profile
  • TP17-02 Gear Tray compatible with Daisy or Brianna + Shade
  • TP17-03 Pair of End Caps
  • TP01-06 Surface Mounted / Suspension Clip
  • TP01-07 Safety Wire
  • TP01-09 Suspension Kit
  • TP01-08 180 Joiner

  • Référence
    TP-17

Fiche Technique TP-17

TP-17 DATASHEET

Téléchargement (1.08MB)
