FLEX SHEET

24V back lighting solutions

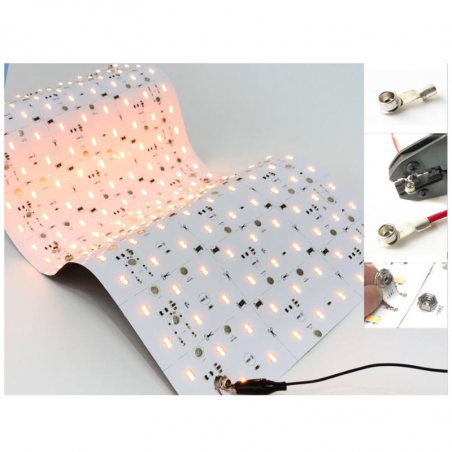

Flex Sheet is a 24V LED backlighting tile solution for uniform illuminated surfaces, signage and architectural light boxes.
Available as mono white, dim-to-warm and dynamic white versions.
DC24V input with flexible tile format for easy integration and cutting.
LED density from 180 to 360 LEDs per tile for mono and dim-to-warm versions; dynamic white version uses 2 × 200 LEDs per tile.
Power range from 5.0W to 20.0W per tile for standard mono/dim-to-warm versions, and up to 50.0W per tile for dynamic white.
Luminous flux up to 2250 lm per tile for standard versions and up to 4200 lm per tile for dynamic white.
Standard tile size 500 × 250 mm with 83 × 50 mm cut unit; dynamic white cut unit 24 × 24 mm with 2 LED segments.
Mono white versions available in 2700K, 3000K, 4000K and 6500K, with additional 1800K, 2100K, 2400K and 5000K options.
Dim-to-warm version changes automatically from 3000K to 1800K by PWM dimming using a 1-channel 2-pin cable (+24V, -24V).
High colour rendering options: Ra≥90 for mono white and dynamic white, Ra≥95 for dim-to-warm.

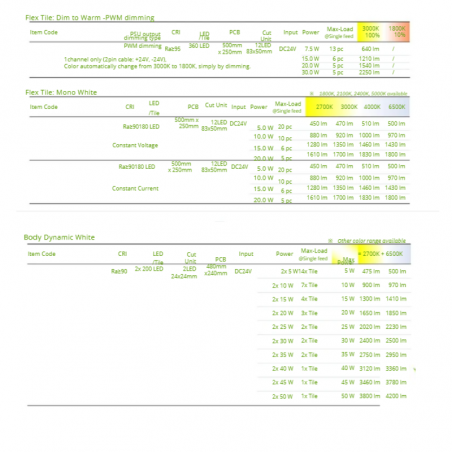

Mono White — 180 LEDs/tile, constant voltage or constant current options, 5W to 20W per tile, max 20 pcs to 5 pcs per single feed depending on power.
Dim to Warm — 360 LEDs/tile, PWM dimming, 7.5W to 30W per tile, up to 2250 lm at 3000K 100%.
Dynamic White — 2 × 200 LEDs/tile, 2 × 5W to 2 × 50W power options, max luminous flux up to 4200 lm, 2700K + 6500K mix.
