LINLED 1100LM 12V PER 1FT 2C+R LED MODULES

LINLED 1100LM 12V PER 1FT 2C+R LED MODULES

Up to 207lm/W - integrated return-path linear modules

MST LinLED built-in constant-current LED module family for long linear lighting systems, trunking and profiles.
2C+R series connection system with two connectors and two additional connectors for the integrated return path; designed for non-SELV systems.

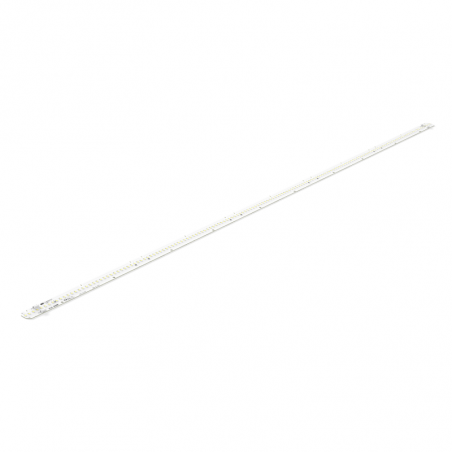

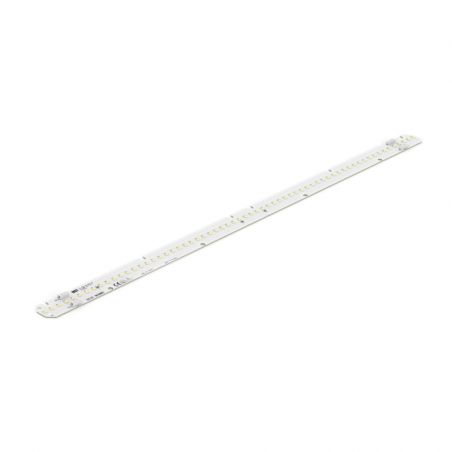

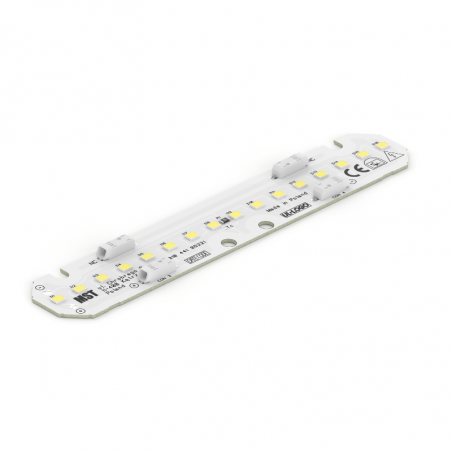

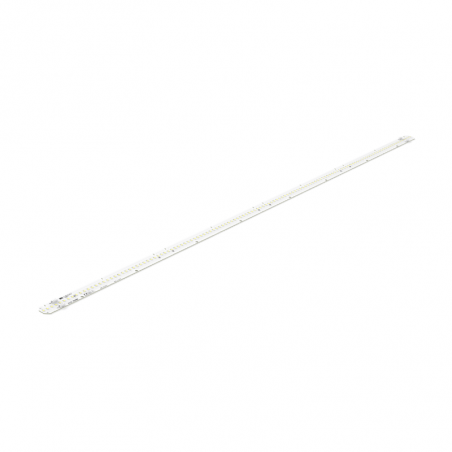

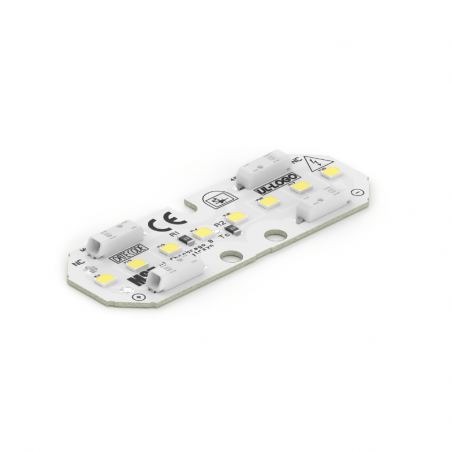

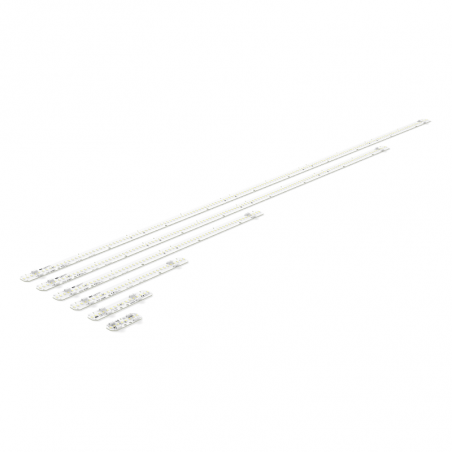

Available in 70, 140, 280, 560, 1120 and 1400mm lengths, all 24mm wide, with nominal product designations from 275lm/3V to 5500lm/60V.
3000K and 4000K versions with CRI 80 or CRI 90; other colour temperatures and CRI values available on request.
CRI 80 variants include S8 G5, CJ G4, CN G3 and LG G2; CRI 90 variants include S8 K G7, S5 K G6 and EH1.1 G3.

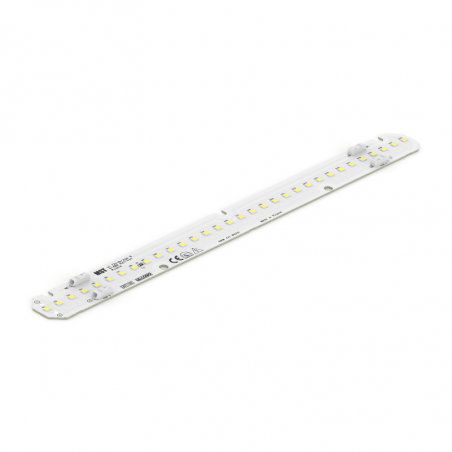

The 280x24mm 1100lm/12V S8 G5 version operates at 520mA, with 11V forward voltage and 5.6W nominal power: 1093lm at 3000K or 1155lm at 4000K, with efficacy up to 207lm/W.
Ordering codes for the 280x24mm S8 G5 CRI 80 versions: 1010 157 14746 (3000K) and 1010 157 15346 (4000K). Other sizes and LED variants have separate ordering codes.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires with an 8-9mm strip length.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety.
Series configurations allow up to 28 modules of 280mm; different lengths may be combined without exceeding 7840mm total, subject to the specified configuration limits.
Maximum rated performance temperature 65°C and maximum safe case temperature 85°C; CE, ENEC, RoHS and REACH compliant, with no standalone IP rating.

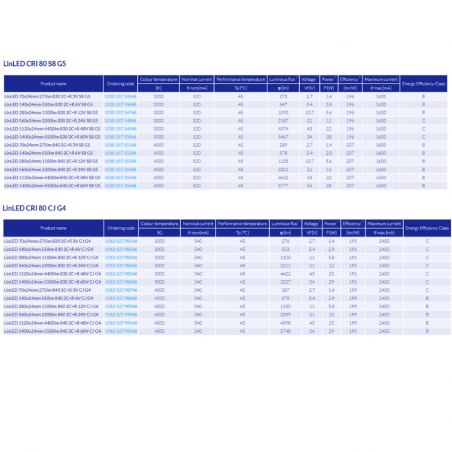

S8 G5, CRI 80, 3000K ordering codes — 70x24mm: 1010 157 14546; 140x24mm: 1010 157 14646; 280x24mm: 1010 157 14746; 560x24mm: 1010 157 14846; 1120x24mm: 1010 157 14946; 1400x24mm: 1010 157 15046.
S8 G5, CRI 80, 4000K ordering codes — 70x24mm: 1010 157 15146; 140x24mm: 1010 157 15246; 280x24mm: 1010 157 15346; 560x24mm: 1010 157 15446; 1120x24mm: 1010 157 15546; 1400x24mm: 1010 157 15646.
CJ G4, CRI 80, 3000K ordering codes — 70x24mm: 1010 127 98146; 140x24mm: 1010 127 98246; 280x24mm: 1010 127 98346; 560x24mm: 1010 127 98446; 1120x24mm: 1010 127 98546; 1400x24mm: 1010 127 98646.
CJ G4, CRI 80, 4000K ordering codes — 70x24mm: 1010 127 98746; 140x24mm: 1010 127 98846; 280x24mm: 1010 127 98946; 560x24mm: 1010 127 99046; 1120x24mm: 1010 127 99146; 1400x24mm: 1010 127 99246.

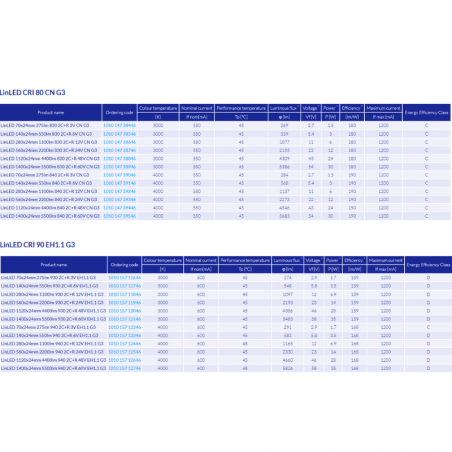

CN G3, CRI 80, 3000K ordering codes — 70x24mm: 1010 147 38446; 140x24mm: 1010 147 38546; 280x24mm: 1010 147 38646; 560x24mm: 1010 147 38746; 1120x24mm: 1010 147 38846; 1400x24mm: 1010 147 38946.
CN G3, CRI 80, 4000K ordering codes — 70x24mm: 1010 147 39046; 140x24mm: 1010 147 39146; 280x24mm: 1010 147 39246; 560x24mm: 1010 147 39346; 1120x24mm: 1010 147 39446; 1400x24mm: 1010 147 39546.
LG G2, CRI 80, 3000K ordering codes — 70x24mm: 1010 147 37246; 140x24mm: 1010 147 37346; 280x24mm: 1010 147 37446; 560x24mm: 1010 147 37546; 1120x24mm: 1010 147 37646; 1400x24mm: 1010 147 37746.
LG G2, CRI 80, 4000K ordering codes — 70x24mm: 1010 147 37846; 140x24mm: 1010 147 37946; 280x24mm: 1010 147 38046; 560x24mm: 1010 147 38146; 1120x24mm: 1010 147 38246; 1400x24mm: 1010 147 38346.
S8 K G7, CRI 90, 3000K ordering codes — 70x24mm: 1010 147 43246; 140x24mm: 1010 147 43346; 280x24mm: 1010 147 43446; 560x24mm: 1010 147 43546; 1120x24mm: 1010 147 43646; 1400x24mm: 1010 147 43746.
S8 K G7, CRI 90, 4000K ordering codes — 70x24mm: 1010 147 43846; 140x24mm: 1010 147 43946; 280x24mm: 1010 147 44046; 560x24mm: 1010 147 44146; 1120x24mm: 1010 147 44246; 1400x24mm: 1010 147 44346.
S5 K G6, CRI 90, 3000K ordering codes — 70x24mm: 1010 147 45646; 140x24mm: 1010 147 45746; 280x24mm: 1010 147 45846; 560x24mm: 1010 147 45946; 1120x24mm: 1010 147 46046; 1400x24mm: 1010 147 46146.
S5 K G6, CRI 90, 4000K ordering codes — 70x24mm: 1010 147 46246; 140x24mm: 1010 147 46346; 280x24mm: 1010 147 46446; 560x24mm: 1010 147 46546; 1120x24mm: 1010 147 46646; 1400x24mm: 1010 147 46746.
EH1.1 G3, CRI 90, 3000K ordering codes — 70x24mm: 1010 157 11646; 140x24mm: 1010 157 11746; 280x24mm: 1010 157 11846; 560x24mm: 1010 157 11946; 1120x24mm: 1010 157 12046; 1400x24mm: 1010 157 12146.
EH1.1 G3, CRI 90, 4000K ordering codes — 70x24mm: 1010 157 12246; 140x24mm: 1010 157 12346; 280x24mm: 1010 157 12446; 560x24mm: 1010 157 12546; 1120x24mm: 1010 157 12646; 1400x24mm: 1010 157 12746.
Series limits by length: 112 modules of 70mm, 56 of 140mm, 28 of 280mm, 14 of 560mm, 7 of 1120mm or 5 of 1400mm; mixed lengths must not exceed 7840mm.
Source note: PDF 55 lists the same 84 ordering codes as the original catalogue model product. This separate record preserves the requested one-product-per-PDF structure and does not represent an additional product revision.
