LINLED 2000LM 42V PER 1FT 2C LED MODULES

LINLED 2000LM 42V PER 1FT 2C LED MODULES

Up to 205lm/W - high-output non-SELV linear modules

MST built-in constant-current linear LED modules with two connectors (2C) for non-SELV series systems.

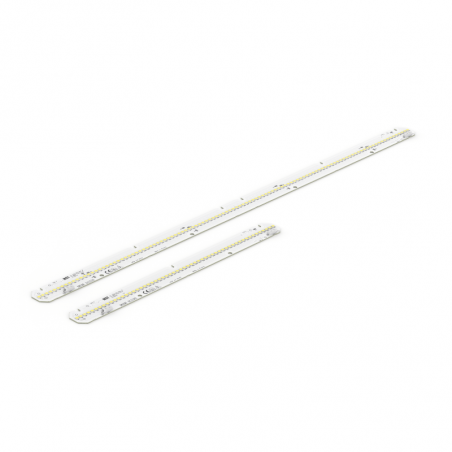

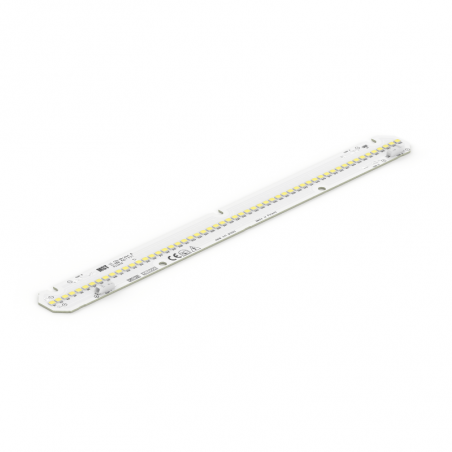

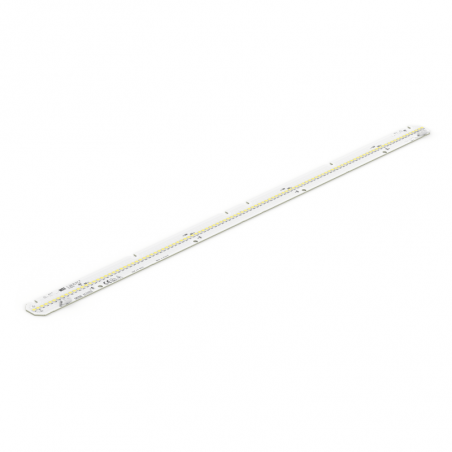

280x24mm nominal 2000lm/42V and 560x24mm nominal 4000lm/84V formats, available at 3000K and 4000K.
CRI 80 variants: CJ G4, CN G3 and LG G2. CRI 90 variants: S8 K G7, S5 K G6 and EH1.1 G3.
S8 K G7 CRI 90 280mm at 4000K: 270mA, 38V forward voltage, 10.1W and 2074lm, up to 205lm/W. The 560mm version delivers 4147lm at 20.3W.
CJ G4 CRI 80 280mm at 4000K: 280mA, 38V, 10.6W and 2084lm, up to 197lm/W.
Maximum 8 modules of 280mm or 4 of 560mm in series; mixed lengths must not exceed 2240mm total.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
Built-in LED modules require suitable luminaire protection; no standalone IP rating.

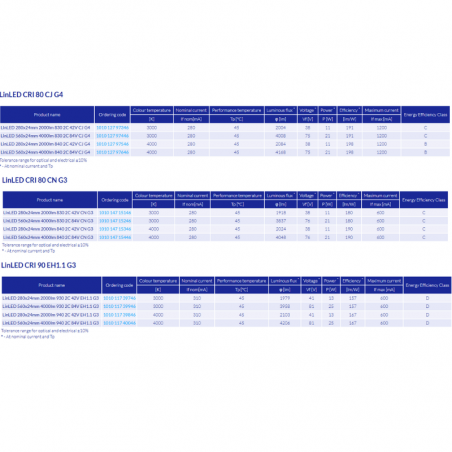

CJ G4: 3000K 280 / 560mm, then 4000K 280 / 560mm ordering codes: 1010 127 97346; 1010 127 97446; 1010 127 97546; 1010 127 97646.
CN G3: 3000K 280 / 560mm, then 4000K 280 / 560mm ordering codes: 1010 147 15146; 1010 147 15246; 1010 147 15346; 1010 147 15446.
LG G2: 3000K 280 / 560mm, then 4000K 280 / 560mm ordering codes: 1010 147 32946; 1010 147 33046; 1010 147 33146; 1010 147 33246.
S8 K G7: 3000K 280 / 560mm, then 4000K 280 / 560mm ordering codes: 1010 147 34746; 1010 147 34846; 1010 147 34946; 1010 147 35046.
S5 K G6: 3000K 280 / 560mm, then 4000K 280 / 560mm ordering codes: 1010 147 47646; 1010 147 47746; 1010 147 47846; 1010 147 47946.
EH1.1 G3: 3000K 280 / 560mm, then 4000K 280 / 560mm ordering codes: 1010 117 39746; 1010 117 39946; 1010 117 39846; 1010 117 40046.
