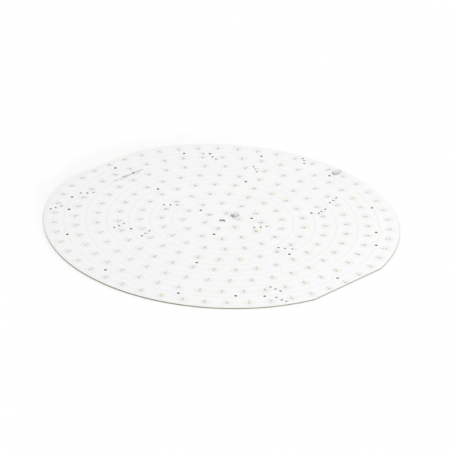

RDLED 580MM LED MODULES

Up to 197lm/W - round 8000lm-class modules

MST built-in constant-current round LED modules, 580mm, nominal 8000lm class, with 48V and 168V product designations.
Listed variants at 3000K and 4000K: CRI 80 CJ G4, CN G3 and LG G2; CRI 90 EH1.1 G3. The family description specifies CCT availability from 2200K to 6500K.

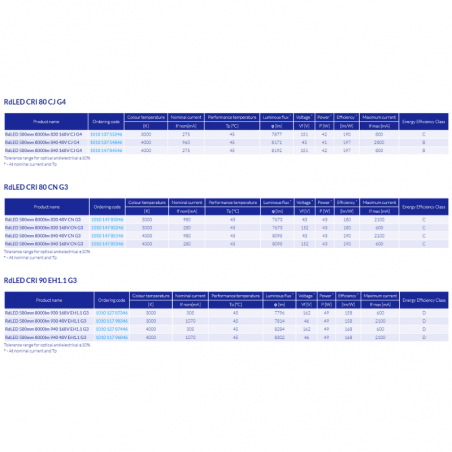

CJ G4 4000K 48V designation: 960mA, 43V forward voltage, 41W and 8171lm. The 168V designation uses 275mA, 151V and 42W for 8192lm. Efficacy up to 197lm/W.
At 4000K, CN G3 delivers 8095lm at 43W; LG G2 delivers 8315lm at 47W; EH1.1 G3 CRI 90 delivers 8302lm for the 48V designation or 8284lm for 168V, at 49W.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
Built-in LED modules require suitable luminaire protection; no standalone IP rating.
CJ G4 3000K 48V / 168V, then 4000K 48V ordering codes: 1010 137 54646; 1010 137 55246; 1010 137 54846.
CJ G4 4000K 168V ordering codes: 1010 147 84546.
CN G3: 3000K 48V / 168V, then 4000K 48V / 168V ordering codes: 1010 147 85046; 1010 147 85246; 1010 147 85146; 1010 147 85346.
LG G2: 3000K 48V / 168V, then 4000K 48V / 168V ordering codes: 1010 147 84646; 1010 147 84846; 1010 147 84746; 1010 147 84946.
EH1.1 G3 48V, 3000K / 4000K ordering codes: 1010 117 98346; 1010 117 96046.
EH1.1 G3 168V, 3000K / 4000K ordering codes: 1010 127 87346; 1010 127 87446.
