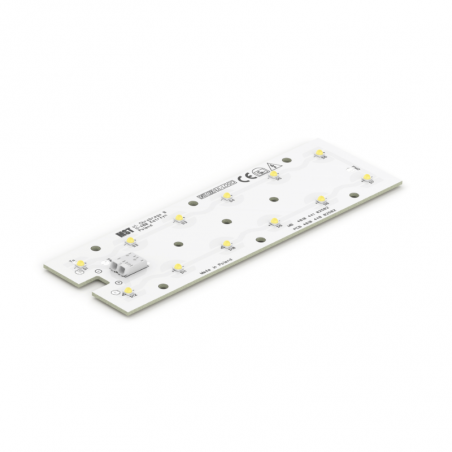

RECLED 146X45MM STRADA-IP-2X6 OPT G2 LED MODULES

Up to 183lm/W - STRADA-IP-2X6 outdoor modules

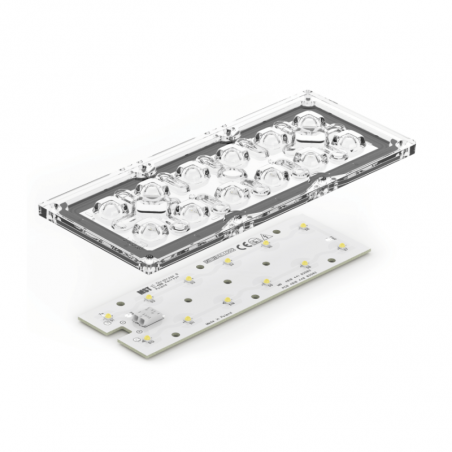

MST built-in constant-current rectangular LED modules for outdoor luminaires, compatible with standard 2x6 optics including LEDiL STRADA-IP-2X6.
146x45mm format, nominal 2900lm designation, CRI 70 Opt G2; listed CCT options are 2200K, 2700K, 3000K and 4000K. Other CCT and CRI on request.
At 500mA nominal current and 17W, luminous flux is 2431lm at 2200K, 2687lm at 2700K, 2858lm at 3000K or 3029lm at 4000K; efficacy up to 183lm/W. Forward voltage is 33V; current range 100-1500mA.
120° beam angle, 5 SDCM and RG2 photobiological safety (RG1 at distances greater than 0.5m). Rated performance temperature 75°C; maximum safe case temperature 95°C.
Maximum 11 modules in series. CE, ENEC, ENEC+, RoHS and REACH compliant. STRADA-IP refers to compatible optics, not a standalone IP rating of the module.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
No standalone IP rating; suitable protection must be provided by the luminaire.
2200K / 2700K ordering codes: 1010 127 84946; 1010 127 50846.
3000K / 4000K ordering codes: 1010 117 74146; 1010 117 74246.
