12W 12V DALI TINY DRIVER

29x36x82mm and touch dim

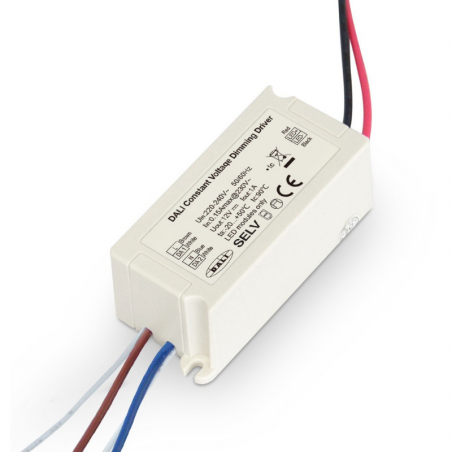

LIGHT & SMART LAS-12D-12V1C single-channel constant-voltage LED driver with 12V DC output, 1A maximum output current and 12W rated output power.
Supports DALI control to IEC 62386 and Touch DIM push-button dimming.
Smooth, flicker-free dimming from 1% to 100%, with dimming to off and power-off memory.
220-240V AC input at 50/60Hz; efficiency above 80% and power factor at least 0.5 at 230V AC and full load.
Output voltage tolerance of ±5%, maximum ripple and noise of 120mV peak-to-peak, and standby power below 1W.
Short-circuit, overload and over-temperature protection with automatic recovery after the fault is removed or temperature returns to normal.
IP20 polycarbonate housing for MR16 and other indoor LED lighting applications; not waterproof.

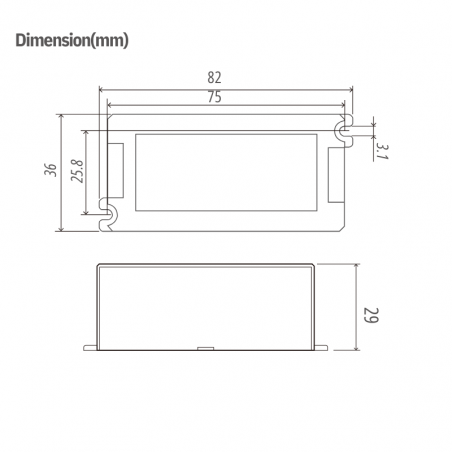

Compact dimensions of 82 x 36 x 29mm and nominal net weight of 85g ±5%.
Rated lifetime of 30,000 hours at Tc 80°C, with a three-year warranty and more than 15,000 switching cycles.
Push DIM requires a normally open push button without an indicator light; maximum cable length between units is 20m.
