LEDiL ELISABETH LED MODULE

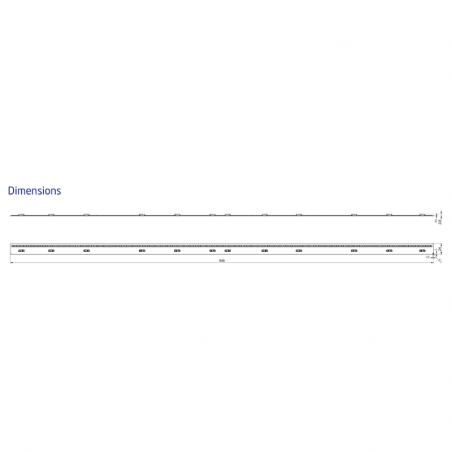

948x24mm high-efficiency linear LED module

948 x 24mm linear LED module for indoor lighting, optimized for LEDiL ELISABETH optics.

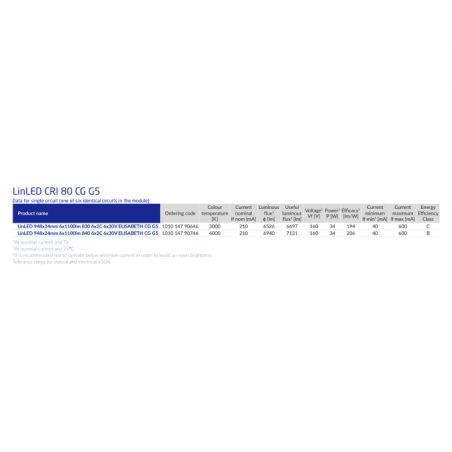

Available in 3000K CRI 80 (ordering codes 1010 147 90646 / 101014790646) and 4000K CRI 80 (ordering codes 1010 147 90746 / 101014790746).
Six identical circuits with a nominal current of 210mA per circuit and a forward voltage of 160V.
Delivers 6526lm at 3000K or 6940lm at 4000K, with useful luminous flux up to 7121lm at 25°C.
High efficacy up to 206lm/W with 34W nominal power.
Built-in constant-current LED module supplied in linear form and intended to be bent during installation.

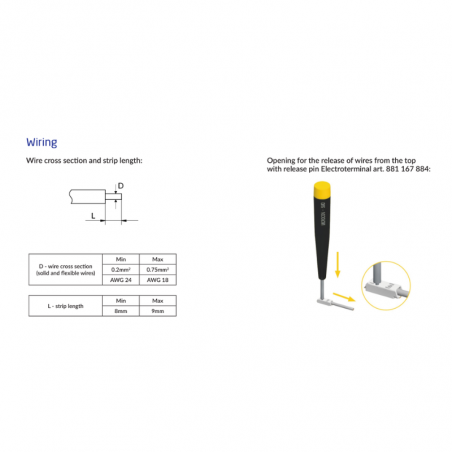

Re-workable push-in terminals for 0.2 to 0.75mm² solid or flexible wires.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety.
Long lifetime exceeding 102,000 hours for L70 and L80 under the specified operating conditions.
CE, RoHS and REACH compliant; designed for integration into a luminaire enclosure and has no standalone IP rating.
